ZXMP3A16N8TA _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	ZXMP3A16N8TA
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	ZXMP3A16N8TR-ND ZXMP3A16N8CT-ND ZXMP3A16N8TR-NDR ZXMP3A16N8DKR ZXMP3A16N8DKRINACTIVE ZXMP3A16N8CT ZXMP3A16N8TR ZXMP3A16N8CT-NDR ZXMP3A16N8DKR-ND
Description	MOSFET P-CH 30V 5.6A 8SO
Detailed Description	P-Channel 30 V 5.6A (Ta) 1.9W (Ta) Surface Mount 8-SO
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

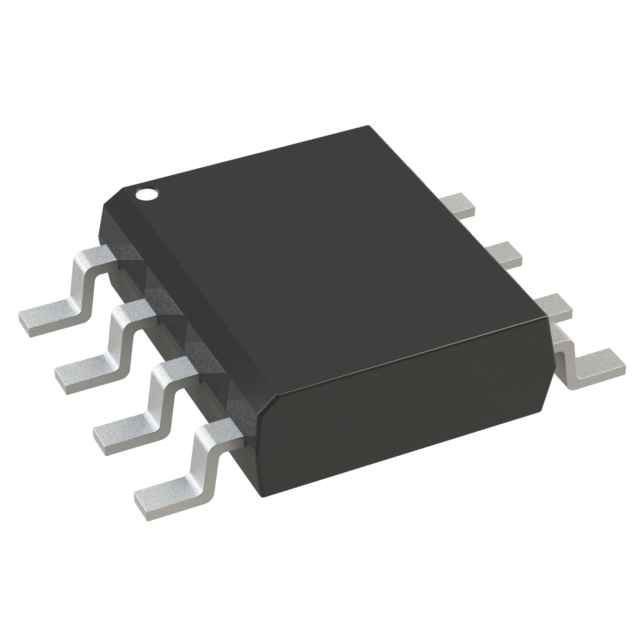

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		5.6A (Ta)
Rds On (Max) @ Id, Vgs		40mOhm @ 4.2A, 10V
Power Dissipation (Max)		1.9W (Ta)
Vgs(th) (Max) @ Id		1V @ 250µA
Supplier Device Package		8-SO
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		29.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1022 pF @ 15 V

RESOURCE TYPE		LINK
Datasheets		ZXMP3A16N8TA
Datasheets		Diodes Environmental Compliance Cert
Datasheets		Mult Dev Die Layer Add 30/Nov/2018
Datasheets		Mult Dev A/T Site 31/Mar/2021

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
