Common Mode Chokes

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Features

A2B

ESD

Industrial

PFC

TVS Diode ESD Protection

Filter Type

Power, Signal Line

Power Line

Signal Line

Mounting Type

Chassis Mount

DIN Rail

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Wire Lead

Number of Lines

Ratings

AEC-Q200

Grade

Automotive

Qualification

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Filter Type	Size / Dimension	Mounting Type	Number of Lines	Operating Temperature	Approval Agency	Ratings	Height (Max)	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Max)	Grade	Inductance @ Frequency	Impedance @ Frequency	Qualification

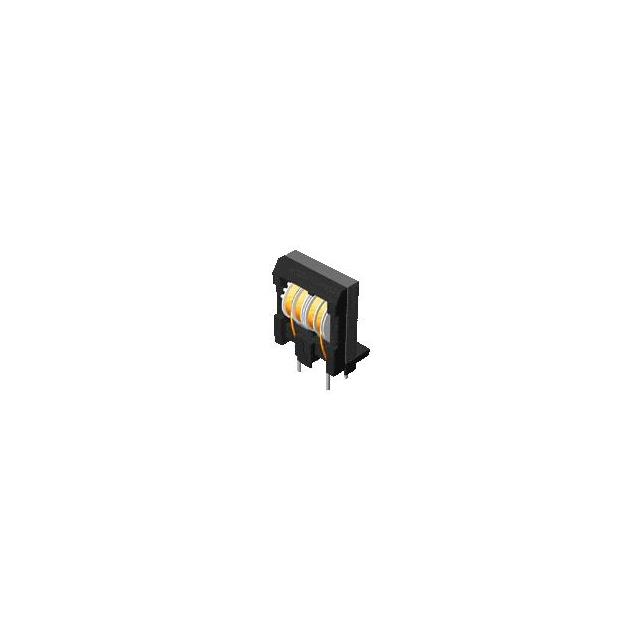

CTUF1015VF-502M0R5 CMC 500MA 2LN TH Central Technologies Datasheet	4 Marketplace	1 : $2.90 500 : $1,180.00 1,000 : $1,810.00 Bulk	CTUF1015VF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.748" L x 0.669" W (19.00mm x 17.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	0.886" (22.50mm)	250V	-	500mA	1.2Ohm	-	-	-	-
CTHF2836F-182M4R0 CMC 4A 2LN TH Central Technologies Datasheet	5 Marketplace	1 : $4.62 500 : $1,875.00 1,000 : $2,890.00 Bulk	CTHF2836F	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	1.201" L x 0.866" W (30.50mm x 22.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	1.417" (36.00mm)	250V	-	4A	50mOhm	-	-	-	-
CTHF2430F-332M2R0 CMC 2A 2LN TH Central Technologies Datasheet	6 Marketplace	1 : $5.44 500 : $2,210.00 1,000 : $3,400.00 Bulk	CTHF2430F	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	1.024" L x 0.748" W (26.00mm x 19.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	1.240" (31.50mm)	250V	-	2A	110mOhm	-	-	-	-
CTUF1015VF-302M0R9 CMC 900MA 2LN TH Central Technologies Datasheet	6 Marketplace	1 : $2.90 500 : $1,180.00 1,000 : $1,810.00 Bulk	CTUF1015VF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.748" L x 0.669" W (19.00mm x 17.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	0.886" (22.50mm)	250V	-	900mA	500mOhm	-	-	-	-

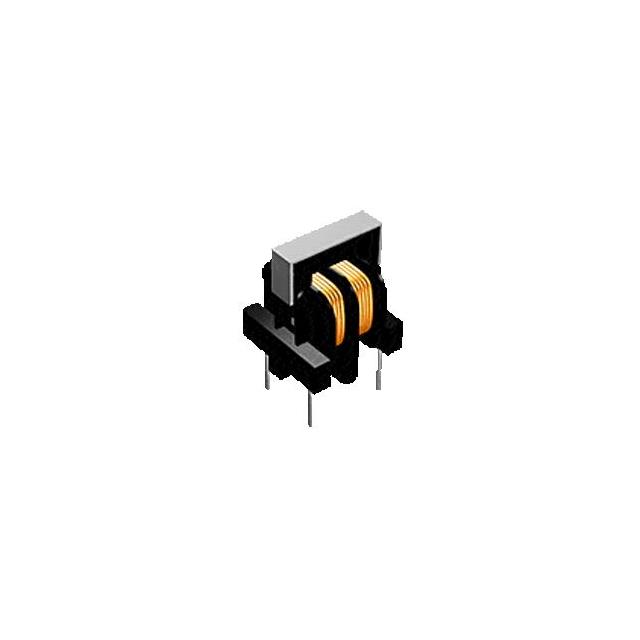

CTUF0917VF-103MR25 CMC 250MA 2LN TH Central Technologies Datasheet	83 Marketplace	1 : $3.64 500 : $1,480.00 1,000 : $2,280.00 Bulk	CTUF0917VF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.709" L x 0.472" W (18.00mm x 12.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	0.669" (17.00mm)	250V	-	250mA	3.5Ohm	-	-	-	-

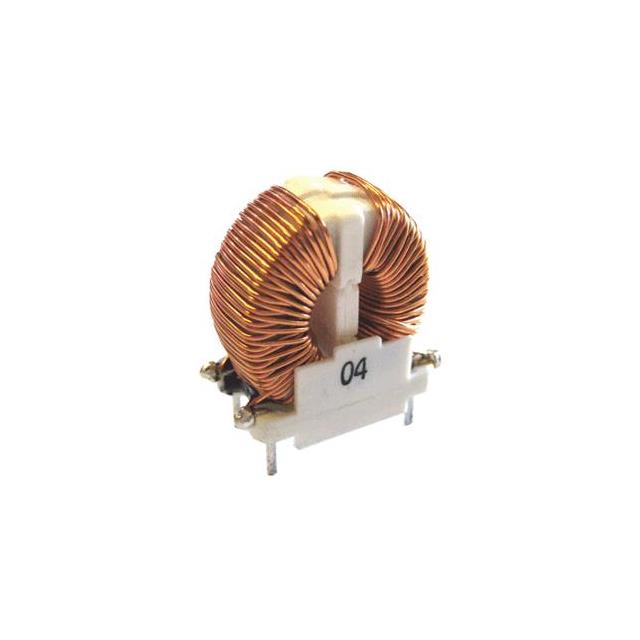

CTTCMCF-04 CMC 10MH 2.4A 2LN TH Central Technologies Datasheet	5 Marketplace	1 : $5.10 500 : $2,070.00 1,000 : $3,190.00 Bulk	CTTCMCF	Bulk	Active	-	Radial, Vertical, 4 Leads (Open)	-	1.200" L x 0.600" W (30.48mm x 15.24mm)	Through Hole	2	-55°C ~ 105°C	-	-	1.200" (30.48mm)	-	-	2.4A	170mOhm	-	10 mH @ 1 kHz	-	-
CTHF2430F-203M1R0 CMC 1A 2LN TH Central Technologies Datasheet	1,000 Marketplace	1 : $5.44 500 : $2,210.00 1,000 : $3,400.00 Bulk	CTHF2430F	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	1.024" L x 0.748" W (26.00mm x 19.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	1.240" (31.50mm)	250V	-	1A	640mOhm	-	-	-	-
CTHF2430F-253M0R8 CMC 800MA 2LN TH Central Technologies Datasheet	5 Marketplace	1 : $5.44 500 : $2,210.00 1,000 : $3,400.00 Bulk	CTHF2430F	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	1.024" L x 0.748" W (26.00mm x 19.00mm)	Through Hole	2	-20°C ~ 105°C	-	-	1.240" (31.50mm)	250V	-	800mA	880mOhm	-	-	-	-
CTACM9070F-701 CMC SMD Central Technologies Datasheet	895 Marketplace	1 : $1.88 500 : $765.00 1,000 : $1,180.00 Tape & Reel (TR)	ctacm	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	-	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-

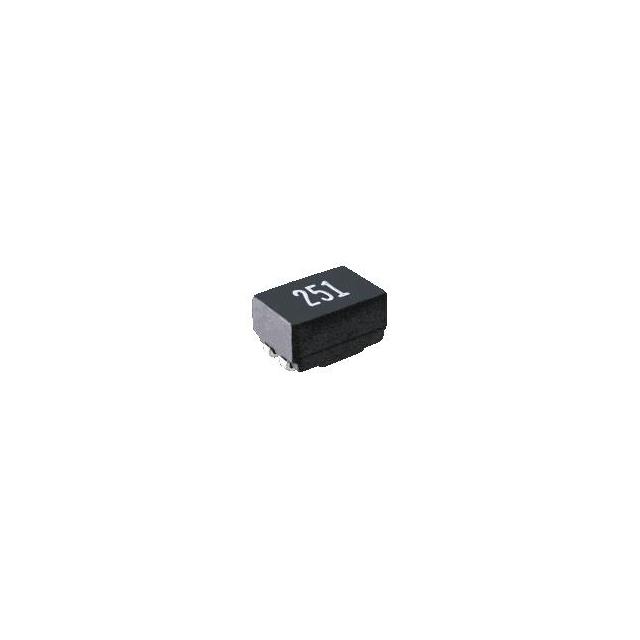

CTCMC0905F-100N CMC 10UH 1.6A 2LN 200 OHM SMD Central Technologies Datasheet	5 Marketplace	1 : $1.32 500 : $535.00 1,000 : $830.00 Tape & Reel (TR)	CTCMC0905F	Tape & Reel (TR)	Active	-	Horizontal, 4 PC Pad	-	0.362" L x 0.236" W (9.20mm x 6.00mm)	Surface Mount	2	-40°C ~ 85°C	-	-	0.209" (5.30mm)	-	50V	1.6A	80mOhm	-	10 µH @ 1 kHz	200 Ohms @ 20 MHz	-
