Crystals

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Surface Mount

Through Hole

Type

MEMS

MHz Crystal

MHz Crystal (w/Thermistor)

SAW

kHz Crystal (Tuning Fork)

Operating Mode

3rd Overtone

5th Overtone

Fundamental

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Load Capacitance	Size / Dimension	Mounting Type	Type	Operating Temperature	Frequency Stability	Frequency Tolerance	Operating Mode	Ratings	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Frequency

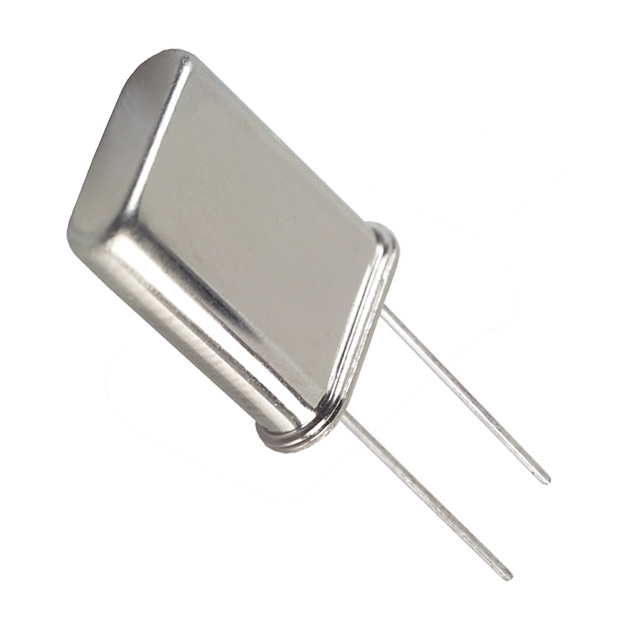

ECS-18-30-1X-JEM CRYSTAL 1.8432MHZ 30PF TH ECS Inc. International Datasheet	1,927 In Stock	1 : $1.23 10 : $10.90 100 : $90.00 1,000 : $710.00 5,000 : $3,300.00 10,000 : $6,400.00 Bulk	HC-49UX	Bulk	Active	HC-49/U	30pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-20°C ~ 70°C	±50ppm	±20ppm	Fundamental	-	0.530" (13.46mm)	750 Ohms	1.8432 MHz

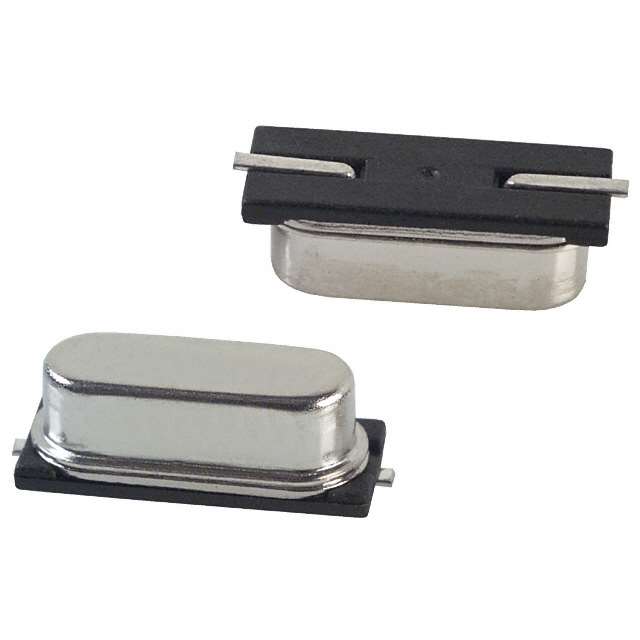

ECS-098.438-CDX-0371 CRYSTAL 9.8438MHZ 12PF SMD ECS Inc. International Datasheet	731 In Stock	1 : $1.48 10 : $14.10 50 : $69.00 100 : $118.00 500 : $575.00 1,000 : $970.00 2,500 : $2,300.00 5,000 : $4,450.00 10,000 : $8,500.00 Strip	CSM-7	Strip	Active	HC-49/US	12pF	0.449" L x 0.189" W (11.40mm x 4.80mm)	Surface Mount	MHz Crystal	-10°C ~ 70°C	±30ppm	±20ppm	Fundamental	-	0.169" (4.30mm)	40 Ohms	9.8438 MHz
ECS-282.594-CDX-0385 CRYSTAL 28.2594MHZ 12PF SMD ECS Inc. International Datasheet	535 In Stock	1 : $1.48 10 : $14.10 50 : $69.00 100 : $118.00 500 : $575.00 Bulk	CSM-7	Bulk	Active	HC-49/US	12pF	0.449" L x 0.189" W (11.40mm x 4.80mm)	Surface Mount	MHz Crystal	-10°C ~ 70°C	±30ppm	±20ppm	Fundamental	-	0.169" (4.30mm)	30 Ohms	28.2594 MHz
ECS-.655-12.5-13X CRYSTAL 65.5360KHZ 12.5PF TH ECS Inc. International Datasheet	698 In Stock	1 : $1.48 10 : $14.10 100 : $118.00 1,000 : $970.00 5,000 : $4,450.00 10,000 : $8,500.00 Bulk	ECS-31X	Bulk	Active	Cylindrical Can, Radial	12.5pF	0.083" Dia x 0.244" L (2.10mm x 6.20mm)	Through Hole	kHz Crystal (Tuning Fork)	-10°C ~ 60°C	-	±30ppm	Fundamental	-	0.244" (6.20mm)	50 kOhms	65.536 kHz

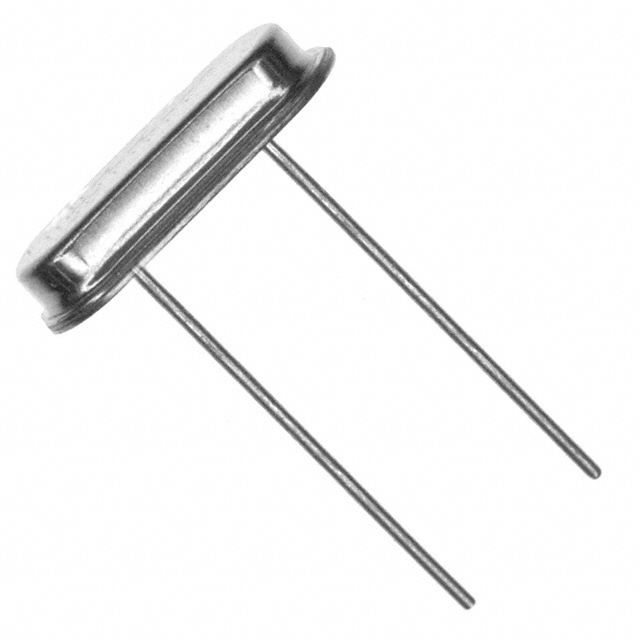

ECS-80-20-4VX CRYSTAL 8.0000MHZ 20PF TH ECS Inc. International Datasheet	199 In Stock	1 : $1.41 10 : $13.50 50 : $66.00 200 : $226.00 600 : $660.00 1,000 : $920.00 2,600 : $2,288.00 5,000 : $4,250.00 10,000 : $8,100.00 Bulk	HC-49USSX	Bulk	Active	HC-49/US	20pF	0.447" L x 0.197" W (11.35mm x 5.00mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.083" (2.10mm)	80 Ohms	8 MHz
ECS-270-20-4VX CRYSTAL 27.0000MHZ 20PF TH ECS Inc. International Datasheet	169 In Stock	1 : $1.41 10 : $13.50 50 : $65.50 200 : $226.00 600 : $654.00 1,000 : $920.00 2,600 : $2,288.00 5,000 : $4,200.00 10,000 : $8,100.00 Bulk	HC-49USSX	Bulk	Active	HC-49/US	20pF	0.447" L x 0.197" W (11.35mm x 5.00mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.083" (2.10mm)	100 Ohms	27 MHz
ECS-20-S-1X CRYSTAL 2.0000MHZ SERIES TH ECS Inc. International Datasheet	230 In Stock	1 : $1.36 10 : $13.00 50 : $63.50 100 : $109.00 500 : $530.00 1,000 : $890.00 2,500 : $2,125.00 5,000 : $4,100.00 10,000 : $7,900.00 Bulk	HC-49UX	Bulk	Active	HC-49/U	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.530" (13.46mm)	500 Ohms	2 MHz
ECS-18-S-1X CRYSTAL 1.8432MHZ SERIES TH ECS Inc. International Datasheet	970 In Stock	1 : $1.36 10 : $13.00 100 : $109.00 1,000 : $890.00 5,000 : $4,100.00 10,000 : $7,900.00 Bulk	HC-49UX	Bulk	Active	HC-49/U	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.530" (13.46mm)	750 Ohms	1.8432 MHz
ECS-20.48-12-1X CRYSTAL 2.0480MHZ 12PF TH ECS Inc. International Datasheet	875 In Stock	1 : $1.36 10 : $13.00 100 : $109.00 1,000 : $890.00 5,000 : $4,100.00 10,000 : $7,900.00 Bulk	HC-49UX	Bulk	Active	HC-49/U	12pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.530" (13.46mm)	500 Ohms	2.048 MHz
ECS-130.625-CDX-0373 CRYSTAL 13.0625MHZ 12PF SMD ECS Inc. International Datasheet	851 In Stock	1 : $1.48 10 : $14.10 50 : $69.00 100 : $118.00 500 : $575.00 Strip	CSM-7	Strip	Active	HC-49/US	12pF	0.449" L x 0.189" W (11.40mm x 4.80mm)	Surface Mount	MHz Crystal	-10°C ~ 70°C	±30ppm	±20ppm	Fundamental	-	0.169" (4.30mm)	30 Ohms	13.0625 MHz
