Crystals

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Surface Mount

Through Hole

Type

MEMS

MHz Crystal

MHz Crystal (w/Thermistor)

SAW

kHz Crystal (Tuning Fork)

Operating Mode

3rd Overtone

5th Overtone

Fundamental

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Load Capacitance	Size / Dimension	Mounting Type	Type	Operating Temperature	Frequency Stability	Frequency Tolerance	Operating Mode	Ratings	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Frequency

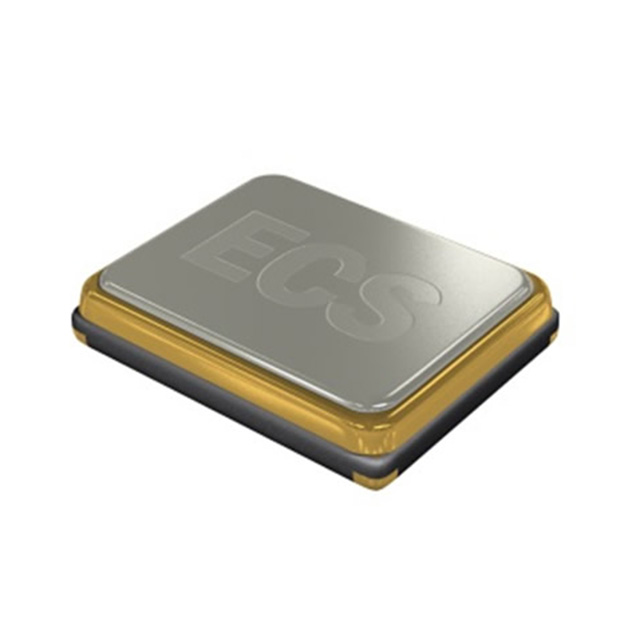

ECS-320-16-33B-CKM-TR CRYSTAL 32.0000MHZ 16PF SMD ECS Inc. International Datasheet	1,933 In Stock	1,000 : $320.00 3,000 : $900.00 5,000 : $1,450.00 10,000 : $2,800.00 Tape & Reel (TR)	ECS-33B	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	16pF	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±10ppm	±10ppm	Fundamental	-	0.031" (0.80mm)	40 Ohms	32 MHz

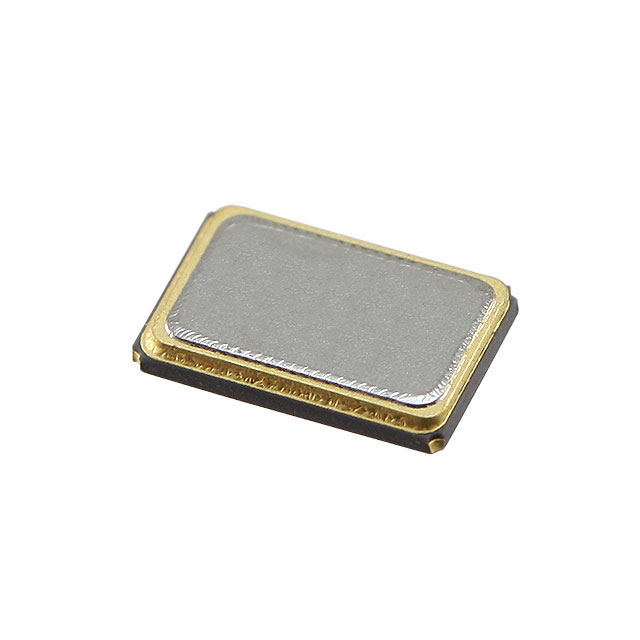

ECS-160-18-33-JEM-TR CRYSTAL 16.0000MHZ 18PF SMD ECS Inc. International Datasheet	6,254 In Stock	1,000 : $270.00 3,000 : $780.00 5,000 : $1,250.00 10,000 : $2,400.00 Tape & Reel (TR)	ECX-32	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	18pF	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±50ppm	±20ppm	Fundamental	-	0.031" (0.80mm)	80 Ohms	16 MHz

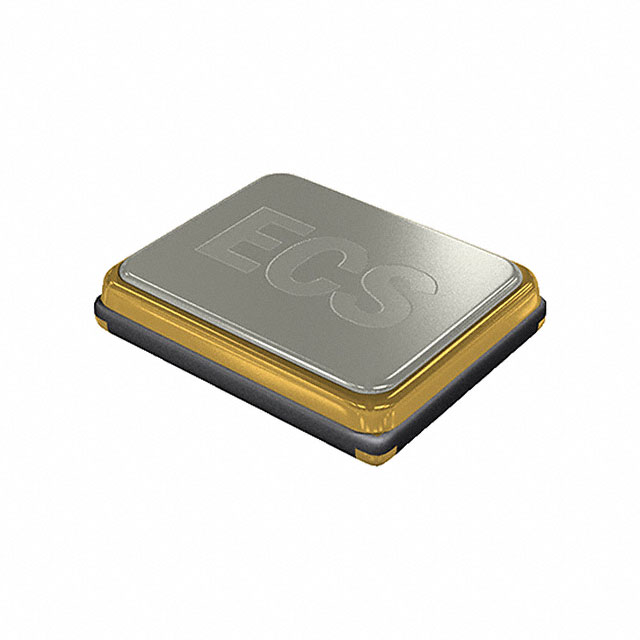

ECS-1142.85-18-33-ADN-TR CRYSTAL 114.2850MHZ 18PF SMD ECS Inc. International Datasheet	921 In Stock	1,000 : $800.00 Tape & Reel (TR)	ECX-32	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	18pF	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±100ppm	±25ppm	3rd Overtone	-	0.031" (0.80mm)	100 Ohms	114.285 MHz
ECS-320-6-37-JTN-TR CRYSTAL 32.0000MHZ 6PF SMD ECS Inc. International Datasheet	2,863 In Stock	1,000 : $360.00 3,000 : $1,020.00 5,000 : $1,650.00 10,000 : $3,200.00 Tape & Reel (TR)	ECX-1637	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	6pF	0.079" L x 0.063" W (2.00mm x 1.60mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±20ppm	±20ppm	Fundamental	-	0.022" (0.55mm)	60 Ohms	32 MHz
ECS-160-10-36-CKM-TR CRYSTAL 16.0000MHZ 10PF SMD ECS Inc. International Datasheet	1,928 In Stock	1,000 : $330.00 3,000 : $930.00 5,000 : $1,500.00 10,000 : $2,900.00 Tape & Reel (TR)	ECX-2236	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	10pF	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±10ppm	±10ppm	Fundamental	-	0.024" (0.60mm)	80 Ohms	16 MHz
ECS-260-18-30B-AGM-TR CRYSTAL 26.0000MHZ 18PF SMD ECS Inc. International Datasheet	7,579 In Stock	1,000 : $400.00 3,000 : $1,170.00 5,000 : $1,850.00 10,000 : $3,600.00 Tape & Reel (TR)	ECX-53B	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	18pF	0.197" L x 0.126" W (5.00mm x 3.20mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±30ppm	±25ppm	Fundamental	-	0.033" (0.85mm)	30 Ohms	26 MHz
ECS-160-8-33-JGN-TR CRYSTAL 16.0000MHZ 8PF SMD ECS Inc. International Datasheet	690 In Stock	1,000 : $300.00 3,000 : $840.00 5,000 : $1,350.00 10,000 : $2,600.00 Tape & Reel (TR)	ECX-32	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	8pF	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±30ppm	±20ppm	Fundamental	-	0.031" (0.80mm)	80 Ohms	16 MHz
ECS-240-8-47-CKM-TR CRYSTAL 24.0000MHZ 8PF SMD ECS Inc. International Datasheet	9,958 In Stock	1,000 : $390.00 3,000 : $1,080.00 5,000 : $1,750.00 10,000 : $3,400.00 Tape & Reel (TR)	ECX-1247	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	8pF	0.063" L x 0.047" W (1.60mm x 1.20mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±10ppm	±10ppm	Fundamental	-	0.014" (0.35mm)	100 Ohms	24 MHz
ECS-271.2-8-33-JGN-TR CRYSTAL 27.1200MHZ 8PF SMD ECS Inc. International Datasheet	5,788 In Stock	1,000 : $280.00 3,000 : $780.00 5,000 : $1,250.00 10,000 : $2,400.00 Tape & Reel (TR)	ECX-32	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	8pF	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±30ppm	±20ppm	Fundamental	-	0.031" (0.80mm)	40 Ohms	27.12 MHz
ECS-384-10-37-CKM-TR CRYSTAL 38.4000MHZ 10PF SMD ECS Inc. International Datasheet	19,228 In Stock	1,000 : $210.00 Tape & Reel (TR)	ECX-1637	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	10pF	0.079" L x 0.063" W (2.00mm x 1.60mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±10ppm	±10ppm	Fundamental	-	0.022" (0.55mm)	60 Ohms	38.4 MHz
