Crystals

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Surface Mount

Through Hole

Type

MEMS

MHz Crystal

MHz Crystal (w/Thermistor)

SAW

kHz Crystal (Tuning Fork)

Operating Mode

3rd Overtone

5th Overtone

Fundamental

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Load Capacitance	Size / Dimension	Mounting Type	Type	Operating Temperature	Frequency Stability	Frequency Tolerance	Operating Mode	Ratings	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Frequency

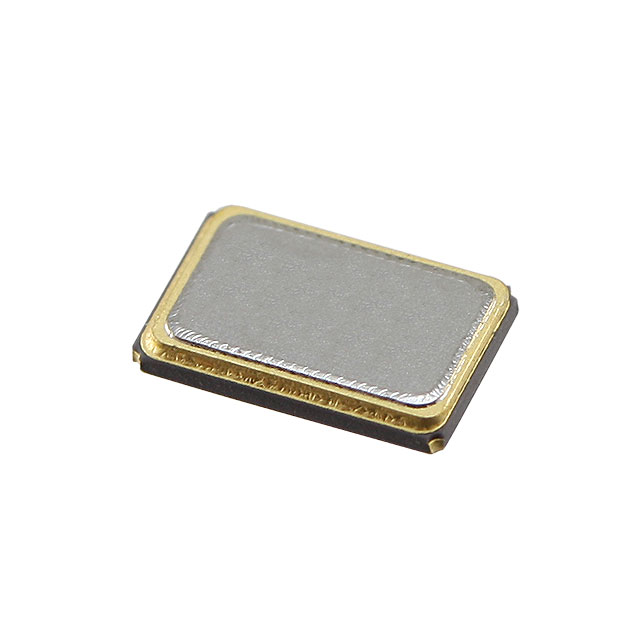

ECS-120-12-30BQ-ADS-TR CRYSTAL 12.0000MHZ 12PF SMD ECS Inc. International Datasheet	1,027 In Stock	1,000 : $630.00 3,000 : $1,830.00 5,000 : $2,950.00 10,000 : $5,700.00 Tape & Reel (TR)	ECX-53BQ	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	12pF	0.197" L x 0.126" W (5.00mm x 3.20mm)	Surface Mount	MHz Crystal	-40°C ~ 125°C	±100ppm	±25ppm	Fundamental	AEC-Q200	0.033" (0.85mm)	80 Ohms	12 MHz

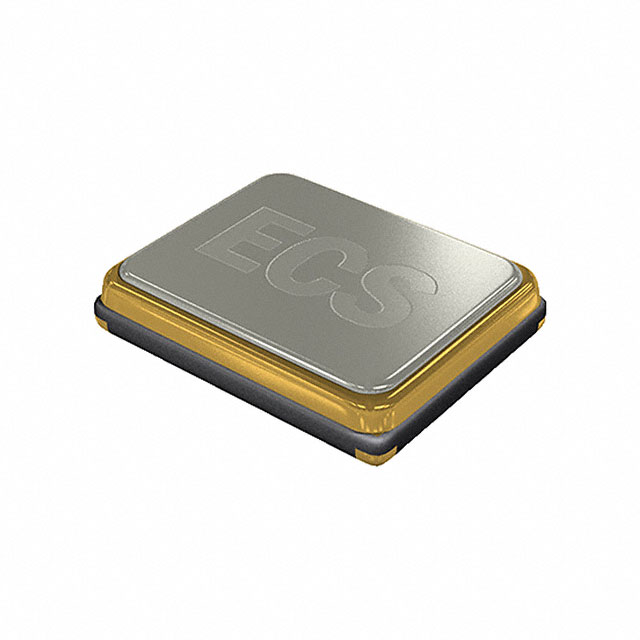

ECS-160-10-37-JTN-TR CRYSTAL 16.0000MHZ 10PF SMD ECS Inc. International Datasheet	93,538 In Stock	1,000 : $210.00 Tape & Reel (TR)	ECX-1637	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	10pF	0.079" L x 0.063" W (2.00mm x 1.60mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±20ppm	±20ppm	Fundamental	-	0.022" (0.55mm)	100 Ohms	16 MHz

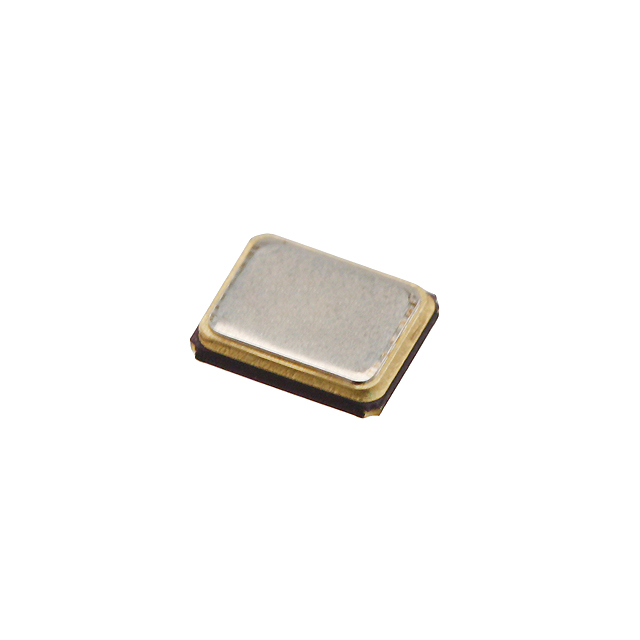

ECS-192-8-33-JGN-TR CRYSTAL 19.2000MHZ 8PF SMD ECS Inc. International Datasheet	300 In Stock	1,000 : $300.00 3,000 : $840.00 5,000 : $1,350.00 10,000 : $2,600.00 Tape & Reel (TR)	ECX-32	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	8pF	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±30ppm	±20ppm	Fundamental	-	0.031" (0.80mm)	80 Ohms	19.2 MHz
ECS-240-13-30B-AEM-TR CRYSTAL 24.0000MHZ 13PF SMD ECS Inc. International Datasheet	4,755 In Stock	1,000 : $420.00 3,000 : $1,230.00 5,000 : $1,950.00 10,000 : $3,800.00 Tape & Reel (TR)	ECX-53B	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	13pF	0.197" L x 0.126" W (5.00mm x 3.20mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±50ppm	±25ppm	Fundamental	-	0.033" (0.85mm)	30 Ohms	24 MHz
ECS-200-10-30B-CKM-TR CRYSTAL 20.0000MHZ 10PF SMD ECS Inc. International Datasheet	3,923 In Stock	1,000 : $560.00 3,000 : $1,620.00 5,000 : $2,600.00 10,000 : $5,000.00 Tape & Reel (TR)	ECX-53B	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	10pF	0.197" L x 0.126" W (5.00mm x 3.20mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±10ppm	±10ppm	Fundamental	-	0.033" (0.85mm)	40 Ohms	20 MHz
ECS-122.8-18-30B-JEM-TR CRYSTAL 12.2880MHZ 18PF SMD ECS Inc. International Datasheet	836 In Stock	1,000 : $450.00 3,000 : $1,320.00 5,000 : $2,100.00 10,000 : $4,100.00 Tape & Reel (TR)	ECX-53B	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	18pF	0.197" L x 0.126" W (5.00mm x 3.20mm)	Surface Mount	MHz Crystal	-20°C ~ 70°C	±50ppm	±20ppm	Fundamental	-	0.033" (0.85mm)	80 Ohms	12.288 MHz
ECS-160-20-30B-AGL-TR CRYSTAL 16.0000MHZ 20PF SMD ECS Inc. International Datasheet	930 In Stock	1,000 : $450.00 3,000 : $1,320.00 5,000 : $2,100.00 10,000 : $4,100.00 Tape & Reel (TR)	ECX-53B	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	20pF	0.197" L x 0.126" W (5.00mm x 3.20mm)	Surface Mount	MHz Crystal	-10°C ~ 70°C	±30ppm	±25ppm	Fundamental	-	0.033" (0.85mm)	50 Ohms	16 MHz
ECS-160-12-36Q-CWY-TR CRYSTAL 16.0000MHZ 12PF SMD ECS Inc. International Datasheet	16,488 In Stock	3,000 : $990.00 6,000 : $1,920.00 15,000 : $4,650.00 Tape & Reel (TR)	ECX-2236Q	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	12pF	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	MHz Crystal	-30°C ~ 85°C	±15ppm	±10ppm	Fundamental	AEC-Q200	0.024" (0.60mm)	80 Ohms	16 MHz
ECS-120-10-36Q-AES-TR CRYSTAL 12.0000MHZ 10PF SMD ECS Inc. International Datasheet	68,913 In Stock	3,000 : $630.00 Tape & Reel (TR)	ECX-2236Q	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	10pF	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	MHz Crystal	-40°C ~ 125°C	±50ppm	±25ppm	Fundamental	AEC-Q200	0.024" (0.60mm)	150 Ohms	12 MHz
ECS-.327-12.5-34S-TR CRYSTAL 32.7680KHZ 12.5PF SMD ECS Inc. International Datasheet	34,597 In Stock	3,000 : $1,260.00 6,000 : $2,460.00 15,000 : $5,850.00 Tape & Reel (TR)	ECX-34S	Tape & Reel (TR) Cut Tape (CT)	Active	2-SMD, No Lead	12.5pF	0.126" L x 0.059" W (3.20mm x 1.50mm)	Surface Mount	kHz Crystal (Tuning Fork)	-40°C ~ 125°C	-	±20ppm	Fundamental	-	0.035" (0.90mm)	70 kOhms	32.768 kHz
