Diode Arrays

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Speed

Fast Recovery =< 500ns, > 200mA (Io)

No Recovery Time > 500mA (Io)

Small Signal =< 200mA (Io), Any Speed

Standard Recovery >500ns, > 200mA (Io)

Grade

Automotive

Military

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Speed	Reverse Recovery Time (trr)	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Operating Temperature - Junction	Grade	Voltage - DC Reverse (Vr) (Max)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Qualification

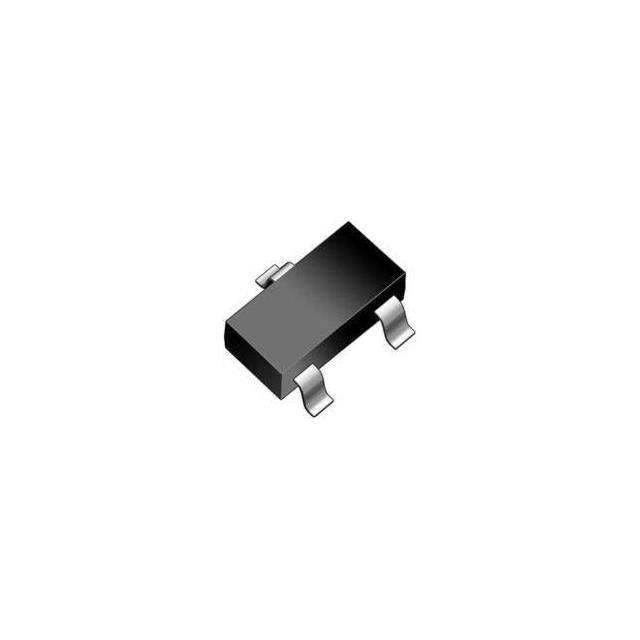

BAT54S DIODE ARR SCHOTT 30V 100MA SOT23 HY Electronic (Cayman) Limited Datasheet	3,000 Marketplace	5 : $222.00 100 : $3,700.00 1,000 : $29,600.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	TO-236-3, SC-59, SOT-23-3	Surface Mount	Small Signal =< 200mA (Io), Any Speed	5 ns	Schottky	1 Pair Series Connection	100mA	SOT-23	-	-	30 V	1 V @ 100 mA	2 µA @ 25 V	-

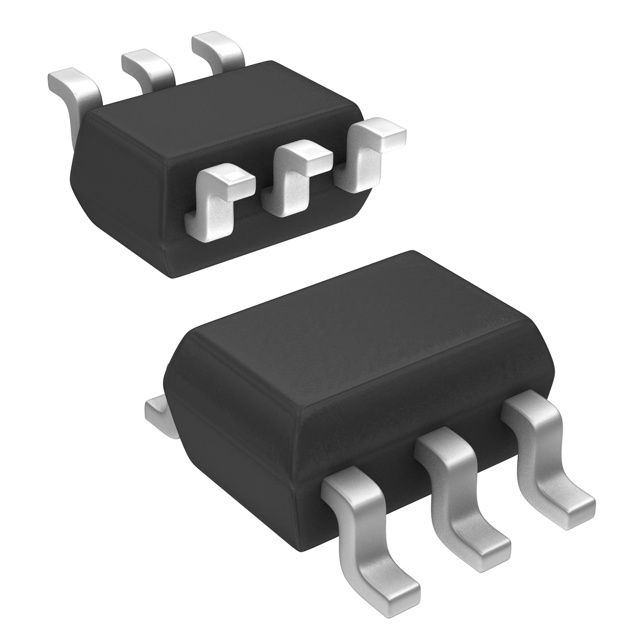

BAV99DW DIODE ARRAY GP 75V 150MA SOT363 HY Electronic (Cayman) Limited Datasheet	3,000 Marketplace	5 : $399.00 100 : $6,650.00 1,000 : $53,200.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	6-TSSOP, SC-88, SOT-363	Surface Mount	Small Signal =< 200mA (Io), Any Speed	4 ns	Standard	2 Pair Series Connection	150mA	SOT-363	-55°C ~ 150°C	-	75 V	1.25 V @ 150 mA	2.5 µA @ 75 V	-
BAW56 DIODE ARRAY GP 70V 200MA SOT23 HY Electronic (Cayman) Limited Datasheet	150 Marketplace	25 : $1.00 Tape & Reel (TR)	BAW56	Tape & Reel (TR)	Active	-	Surface Mount	Small Signal =< 200mA (Io), Any Speed	6 ns	Standard	1 Pair Common Anode	200mA	SOT-23	150°C	-	70 V	1.25 V @ 150 mA	2.5 µA @ 100 V	-
BAV99 DIODE ARRAY GP 70V 200MA SOT23 HY Electronic (Cayman) Limited Datasheet	765 Marketplace	25 : $1.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	-	Surface Mount	Small Signal =< 200mA (Io), Any Speed	6 ns	Standard	1 Pair Series Connection	200mA	SOT-23	150°C	-	70 V	1.25 V @ 150 mA	2.5 µA @ 100 V	-
MMBD7000 DIODE ARRAY GP 100V 500MA SOT23 HY Electronic (Cayman) Limited Datasheet	120 Marketplace	5 : $0.25 Tape & Reel (TR)	MMBD7000	Tape & Reel (TR)	Active	-	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	4 ns	Standard	1 Pair Series Connection	500mA (DC)	SOT-23	150°C	-	100 V	1.1 V @ 100 mA	3 µA @ 100 V	-
BAV70 DIODE ARRAY GP 70V 200MA SOT23 HY Electronic (Cayman) Limited Datasheet	150 Marketplace	5 : $0.20 Tape & Reel (TR)		Tape & Reel (TR)	Active	-	Surface Mount	Small Signal =< 200mA (Io), Any Speed	6 ns	Standard	1 Pair Common Cathode	200mA	SOT-23	150°C	-	70 V	1.25 V @ 150 mA	2.5 µA @ 100 V	-
2GBJ10 GLASS PASSIVATED BRIDGE RECTIFIE HY Electronic (Cayman) Limited Datasheet	20 Marketplace	5 : $4.45 Tube	2GBJ	Tube	Active	4-SIP, GBJ	Through Hole	-	-	Standard	-	-	2GBJ	-	-	-	1.05 V @ 2 A	5 µA @ 1000 V	-
H15C328V0B ESD PROTECTION DIODE HY Electronic (Cayman) Limited Datasheet	2,180 Marketplace	5 : $1.35 Tape & Reel (TR)	HxxC32xVxB	Tape & Reel (TR)	Active	TO-236-3, SC-59, SOT-23-3	Surface Mount	-	-	-	-	-	SOT-23	-	-	-	-	-	-
H02X212VBU ESD PROTECTION DIODE HY Electronic (Cayman) Limited Datasheet	58 Marketplace	5 : $0.55 Tape & Reel (TR)		Tape & Reel (TR)	Active	0402 (1006 Metric)	Surface Mount	-	-	-	-	-	DFN1006	-	-	-	-	-	-
H20D55V0B ESD PROTECTION DIODE HY Electronic (Cayman) Limited Datasheet	1,033 Marketplace	5 : $0.55 Tape & Reel (TR)		Tape & Reel (TR)	Active	SC-79, SOD-523	Surface Mount	-	-	-	-	-	SOD-523	-	-	-	-	-	-
