Edgeboard Connectors

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Gender	Contact Finish	Color	Mounting Type	Number of Positions	Pitch	Operating Temperature	Read Out	Contact Type	Card Type	Card Thickness	Flange Feature	Termination	Contact Finish Thickness	Material - Insulation	Contact Material	Number of Positions/Bay/Row	Number of Rows	Termination Rows
MEC1-140-02-F-D-LC CONN EDGE DUAL FMALE 80POS 0.039 Samtec, Inc. Datasheet	145 In Stock	1 : $9.71 10 : $87.40 25 : $205.75 50 : $401.00 100 : $781.00 250 : $1,742.50 500 : $3,270.00 1,000 : $5,780.00 Tube	MEC1	Tube	Active	Board Lock	Female	Gold	Black	Surface Mount	80	0.039" (1.00mm)	-55°C ~ 125°C	Dual	Loop Bellows	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	3.00µin (0.076µm)	Liquid Crystal Polymer (LCP)	Beryllium Copper	-	2	-
MECF-08-01-L-DV-WT CONN EDGE DUAL FMALE 16POS 0.05 Samtec, Inc. Datasheet	41 In Stock	1 : $7.56 10 : $68.40 25 : $161.50 50 : $315.00 100 : $599.00 250 : $1,340.00 500 : $2,520.00 1,000 : $4,410.00 Tube	MECF	Tube	Active	Board Guide	Female	Gold	Black	Surface Mount	16	0.050" (1.27mm)	-55°C ~ 125°C	Dual	Cantilever	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	10.0µin (0.25µm)	Liquid Crystal Polymer (LCP)	Beryllium Copper	-	2	-
MB1-120-01-L-S-01-SL-N 1.00 MM MINI EDGE CARD SOCKET WI Samtec, Inc. Datasheet	101 In Stock	1 : $8.64 10 : $77.80 25 : $183.25 50 : $357.00 100 : $695.00 250 : $1,550.00 500 : $2,910.00 1,000 : $5,150.00 Tube	MB1	Tube	Active	Board Guide, Card Guide	Female	Gold	Black	Surface Mount, Right Angle	20	0.039" (1.00mm)	-55°C ~ 125°C	Single	Loop Bellows	Non Specified - Single Edge	0.031" (0.79mm)	-	Solder	10.0µin (0.25µm)	Liquid Crystal Polymer (LCP)	Beryllium Copper	-	1	1

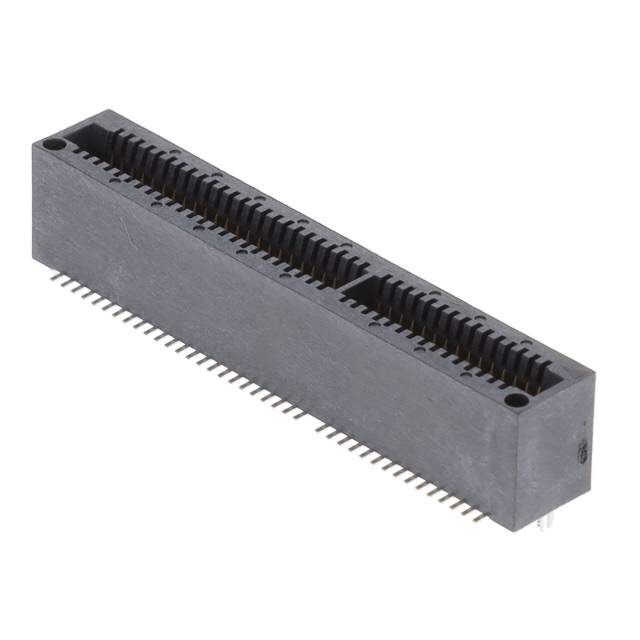

MEC1-150-02-S-D-A CONN EDGE DUAL FML 100POS 0.039 Samtec, Inc. Datasheet	138 In Stock	1 : $12.82 10 : $113.60 25 : $273.25 50 : $524.50 100 : $991.00 250 : $2,257.50 500 : $4,225.00 1,000 : $7,750.00 Tube	MEC1	Tube	Active	Board Guide	Female	Gold	Black	Surface Mount	100	0.039" (1.00mm)	-55°C ~ 125°C	Dual	Loop Bellows	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	30.0µin (0.76µm)	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-	2	-
HSEC8-113-01-S-DV-A CONN EDGE DUAL FMALE 26POS 0.031 Samtec, Inc. Datasheet	3,618 In Stock	1 : $2.58 10 : $22.40 25 : $53.75 40 : $84.00 80 : $160.00 230 : $416.30 440 : $734.80 945 : $1,351.35 2,400 : $3,216.00 Tray	Edge Rate™ HSEC8	Tray	Active	Board Guide, Locking Ramp	Female	Gold	Black	Surface Mount	26	0.031" (0.80mm)	-55°C ~ 125°C	Dual	Cantilever	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	30.0µin (0.76µm)	Liquid Crystal Polymer (LCP)	Beryllium Copper	13	2	-

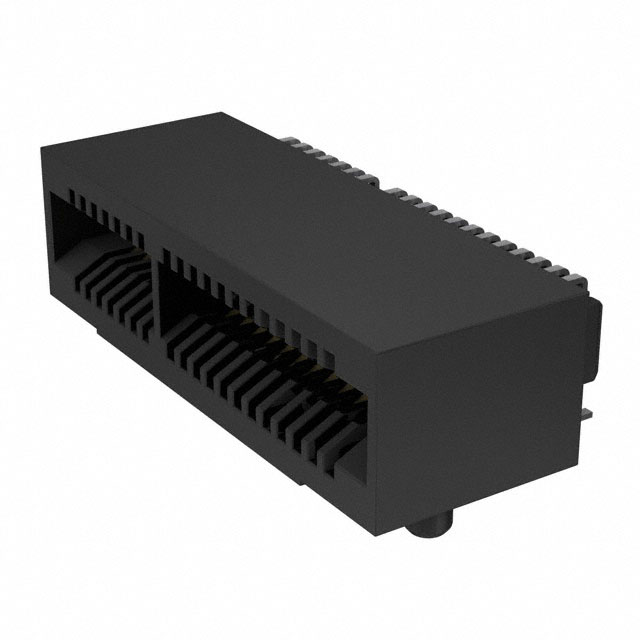

MEC8-130-02-L-D-RA1 CONN EDGE DUAL FMALE 60POS 0.031 Samtec, Inc. Datasheet	24 In Stock	1 : $11.50 10 : $103.50 25 : $243.75 40 : $380.00 80 : $740.00 230 : $1,897.50 440 : $3,410.00 945 : $6,473.25 Tray	MEC8 - RA	Tray	Active	Board Guide	Female	Gold	Black	Surface Mount, Right Angle	60	0.031" (0.80mm)	-55°C ~ 125°C	Dual	-	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	10.0µin (0.25µm)	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-	2	-
PCIE-036-02-F-D-TH CONN PCI EXP FMALE 36POS 0.039 Samtec, Inc. Datasheet	637 In Stock	1 : $2.48 10 : $21.60 25 : $51.75 50 : $101.00 100 : $193.00 250 : $437.50 500 : $805.00 1,000 : $1,380.00 2,500 : $3,225.00 Tube	PCI Express® (PCIe)	Tube	Active	Board Guide	Female	Gold	Black	Through Hole	36	0.039" (1.00mm)	-55°C ~ 125°C	Dual	-	PCI Express™	0.062" (1.57mm)	-	Solder, Staggered	3.00µin (0.076µm)	Polyamide (PA66), Nylon 6/6	Phosphor Bronze	-	2	-

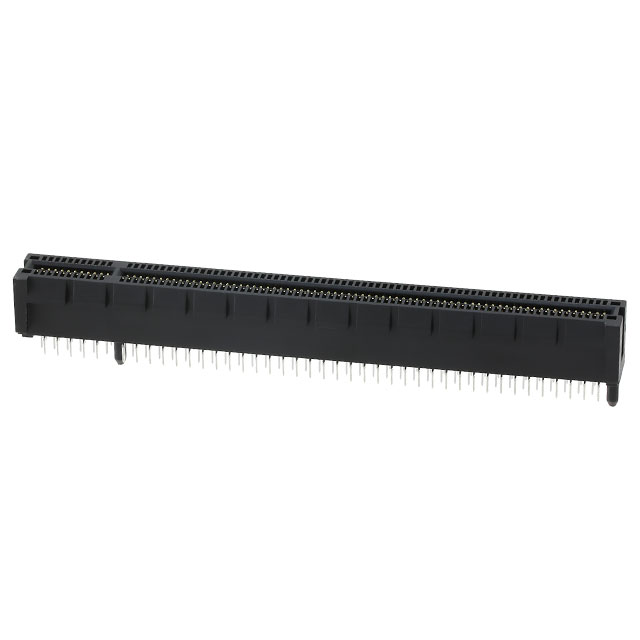

PCIE-164-02-F-D-TH CONN PCI EXP FMALE 164POS 0.039 Samtec, Inc. Datasheet	1,150 In Stock	1 : $3.71 10 : $33.70 25 : $79.75 50 : $156.00 100 : $297.00 250 : $650.00 500 : $1,260.00 1,000 : $2,150.00 2,500 : $5,000.00 Tube	PCI Express® (PCIe)	Tube	Active	Board Guide	Female	Gold	Black	Through Hole	164	0.039" (1.00mm)	-55°C ~ 125°C	Dual	-	PCI Express™	0.062" (1.57mm)	-	Solder, Staggered	3.00µin (0.076µm)	Polyamide (PA66), Nylon 6/6	Phosphor Bronze	-	2	-

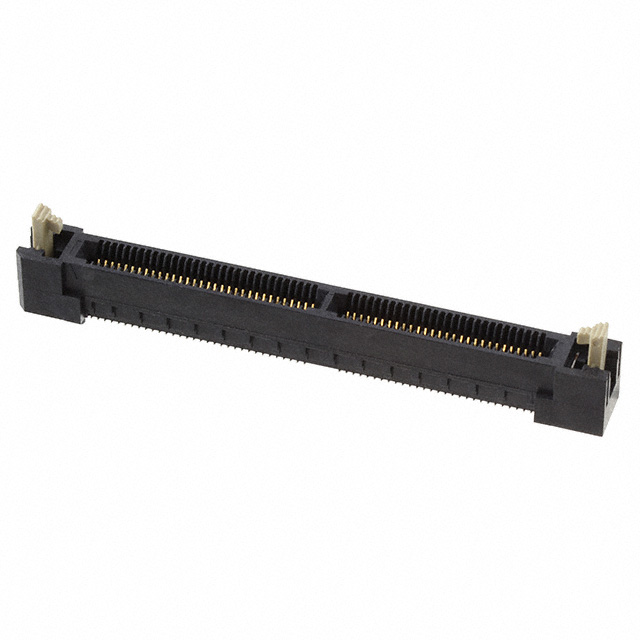

HSEC8-160-01-L-DV-A-BL CONN EDGE DUAL FML 120POS 0.031 Samtec, Inc. Datasheet	1,371 In Stock	1 : $7.17 10 : $64.80 25 : $153.25 40 : $239.20 80 : $454.40 230 : $1,168.40 440 : $2,103.20 945 : $3,950.10 2,400 : $9,528.00 Tray	Edge Rate™ HSEC8	Tray	Active	Board Guide, Board Lock	Female	Gold	Black	Surface Mount	120	0.031" (0.80mm)	-55°C ~ 125°C	Dual	Cantilever	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	10.0µin (0.25µm)	Liquid Crystal Polymer (LCP)	Beryllium Copper	60	2	-
MEC1-120-02-L-D-RA1-SL CONN EDGE DUAL FMALE 40POS 0.039 Samtec, Inc. Datasheet	56 In Stock	1 : $11.20 10 : $100.80 25 : $237.25 50 : $462.50 100 : $901.00 250 : $2,007.50 500 : $3,775.00 1,000 : $6,670.00 Tube	MEC1	Tube	Active	Board Lock	Female	Gold	Black	Surface Mount, Right Angle	40	0.039" (1.00mm)	-55°C ~ 125°C	Dual	Loop Bellows	Non Specified - Dual Edge	0.062" (1.57mm)	-	Solder	10.0µin (0.25µm)	Liquid Crystal Polymer (LCP)	Beryllium Copper	-	2	-
