Oscillators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Free Hanging

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Function

Amplitude Control

Enable/Disable

Enable/Disable (Reprogrammable)

Low-G Sensitivity

Standby (Power Down)

Tri-State (Output Enable)

Ratings

AEC-Q100

AEC-Q100, AEC-Q200

AEC-Q200

Base Resonator

Crystal

MEMS

Rubidium

Silicon

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Size / Dimension	Mounting Type	Output	Function	Type	Operating Temperature	Frequency Stability	Voltage - Supply	Ratings	Spread Spectrum Bandwidth	Current - Supply (Max)	Current - Supply (Disable) (Max)	Height - Seated (Max)	Absolute Pull Range (APR)	Frequency	Base Resonator
ECS-100A-040 XTAL OSC XO 4.0000MHZ TTL TH ECS Inc. International Datasheet	793 In Stock	1 : $3.15 25 : $77.00 50 : $146.50 100 : $256.00 500 : $1,245.00 1,000 : $2,120.00 2,500 : $4,950.00 5,000 : $9,500.00 Bulk	ECS-100	Bulk	Active	14-DIP, 4 Leads (Full Size, Metal Can)	0.821" L x 0.520" W (20.86mm x 13.20mm)	Through Hole	TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	15mA	-	0.200" (5.08mm)	-	4 MHz	Crystal
ECS-100A-051 XTAL OSC XO 5.0688MHZ TTL TH ECS Inc. International Datasheet	646 In Stock	1 : $3.15 25 : $77.00 50 : $146.50 100 : $256.00 500 : $1,245.00 1,000 : $2,120.00 2,500 : $4,950.00 5,000 : $9,500.00 Bulk	ECS-100	Bulk	Active	14-DIP, 4 Leads (Full Size, Metal Can)	0.821" L x 0.520" W (20.86mm x 13.20mm)	Through Hole	TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	15mA	-	0.200" (5.08mm)	-	5.0688 MHz	Crystal
ECS-100A-200 XTAL OSC XO 20.0000MHZ TTL TH ECS Inc. International Datasheet	654 In Stock	1 : $3.15 25 : $77.00 100 : $256.00 1,000 : $2,120.00 5,000 : $9,500.00 Bulk	ECS-100	Bulk	Active	14-DIP, 4 Leads (Full Size, Metal Can)	0.821" L x 0.520" W (20.86mm x 13.20mm)	Through Hole	TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	30mA	-	0.200" (5.08mm)	-	20 MHz	Crystal

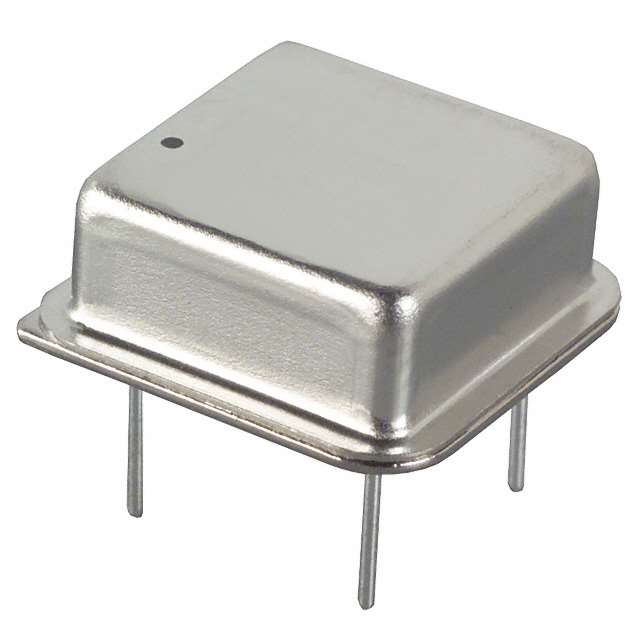

ECS-2100A-010 XTAL OSC XO 1.0000MHZ HCMOS TTL ECS Inc. International Datasheet	545 In Stock	1 : $3.15 40 : $123.20 80 : $234.40 120 : $307.20 520 : $1,294.80 1,000 : $2,120.00 2,520 : $4,989.60 5,000 : $9,500.00 Tube	ECS-2100	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	1 MHz	Crystal
ECS-2100A-283.2 XTAL OSC XO 28.3220MHZ HCMOS TTL ECS Inc. International Datasheet	474 In Stock	1 : $1.93 40 : $74.00 80 : $144.00 120 : $186.00 520 : $780.00 1,000 : $1,270.00 2,520 : $3,024.00 5,000 : $5,800.00 Tube	ECS-2100	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	46mA	-	0.213" (5.40mm)	-	28.322 MHz	Crystal
ECS-2100A-400 XTAL OSC XO 40.0000MHZ HCMOS TTL ECS Inc. International Datasheet	160 In Stock	1 : $1.76 40 : $68.40 80 : $130.40 120 : $172.80 Tube	ECS-2100	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	46mA	-	0.213" (5.40mm)	-	40 MHz	Crystal
ECS-2100A-160 XTAL OSC XO 16.0000MHZ HCMOS TTL ECS Inc. International Datasheet	84 In Stock	1 : $1.93 40 : $74.00 80 : $144.00 120 : $186.00 520 : $780.00 1,000 : $1,270.00 2,520 : $3,024.00 5,000 : $5,800.00 Tube	ECS-2100	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	16 MHz	Crystal
ECS-2200B-049 XTAL OSC XO 4.9152MHZ HCMOS TTL ECS Inc. International Datasheet	655 In Stock	1 : $3.15 40 : $123.20 80 : $234.40 120 : $307.20 520 : $1,294.80 1,000 : $2,120.00 2,520 : $4,989.60 5,000 : $9,500.00 Bulk	ECS-2200	Bulk	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	Enable/Disable	XO (Standard)	0°C ~ 70°C	±50ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	4.9152 MHz	Crystal
ECS-2200B-250 XTAL OSC XO 25.0000MHZ HCMOS TTL ECS Inc. International Datasheet	67 In Stock	1 : $3.15 40 : $123.20 120 : $307.20 1,000 : $2,120.00 5,000 : $9,500.00 Bulk	ECS-2200	Bulk	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	Enable/Disable	XO (Standard)	0°C ~ 70°C	±50ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	25 MHz	Crystal
ECS-2200B-120 XTAL OSC XO 12.0000MHZ HCMOS TTL ECS Inc. International Datasheet	99 In Stock	1 : $2.28 40 : $89.20 80 : $169.60 120 : $223.20 520 : $936.00 1,000 : $1,540.00 2,520 : $3,603.60 5,000 : $6,900.00 Bulk	ECS-2200	Bulk	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	Enable/Disable	XO (Standard)	0°C ~ 70°C	±50ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	12 MHz	Crystal
