EMI/RFI Filters (LC, RC Networks)

Mfr Part #	Quantity	Price	Series	Package	Product Status	Voltage - Rated	Package / Case	Size / Dimension	Mounting Type	Type	Operating Temperature	Values	Height	Attenuation Value	Filter Order	Applications	Technology	Center / Cutoff Frequency	Resistance - Channel (Ohms)	ESD Protection	Grade	Number of Channels	Current	Qualification

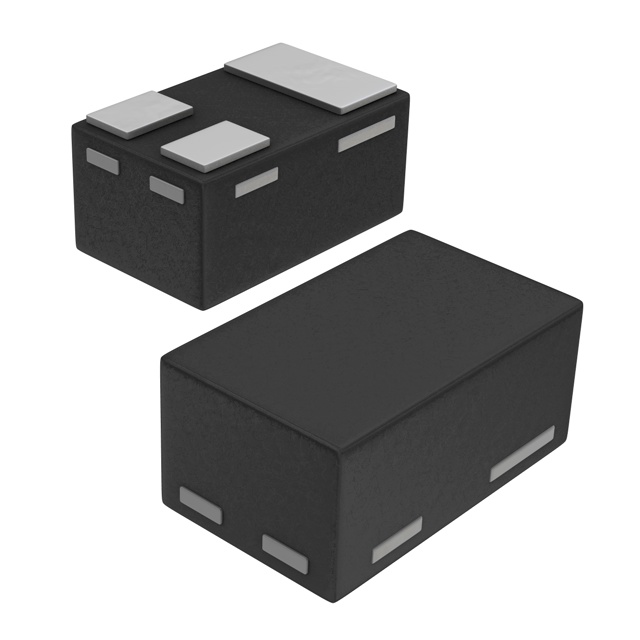

PEMI1QFN/WT,315 FILTER RC(PI) 200 OHM/23PF SMD NXP Semiconductors Datasheet	10,000 Marketplace	3,806 : $304.48 Bulk	PEMIxQFN	Bulk	Obsolete	-	SC-101, SOT-883	0.039" L x 0.024" W (1.00mm x 0.60mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 200Ohms, C = 23pF (Total)	0.020" (0.50mm)	32dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	200	Yes	-	1	-	-

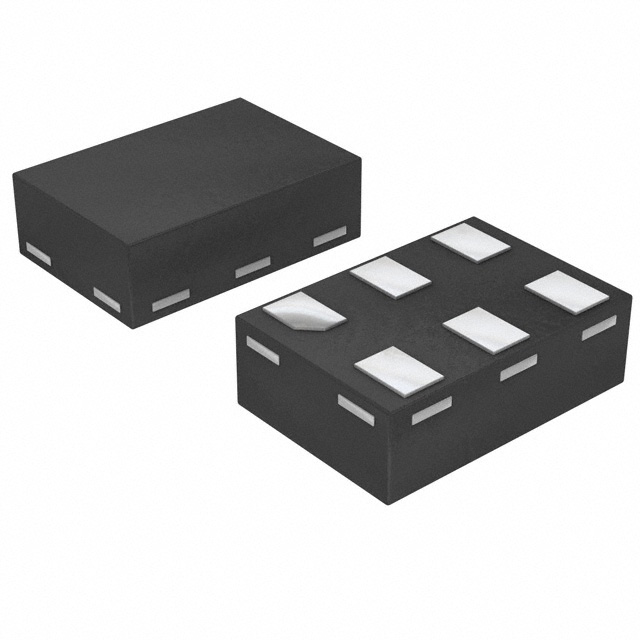

PEMI2QFN/RT,115 FILTER RC(PI) 100 OHM/23PF SMD NXP Semiconductors Datasheet	10,000 Marketplace	3,806 : $304.48 Bulk	PEMIxQFN	Bulk	Obsolete	-	6-XFDFN	0.057" L x 0.039" W (1.45mm x 1.00mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 100Ohms, C = 23pF (Total)	0.020" (0.50mm)	27dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	100	Yes	-	2	-	-
PEMI1QFN/RR,315 FILTER RC(PI) 100 OHM/21PF SMD NXP Semiconductors Datasheet	10,000 Marketplace	3,806 : $304.48 Bulk	PEMIxQFN	Bulk	Obsolete	-	SC-101, SOT-883	0.039" L x 0.024" W (1.00mm x 0.60mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 100Ohms, C = 21pF (Total)	0.020" (0.50mm)	25dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	100	Yes	-	1	-	-
PEMI2QFN/LM,115 FILTER RC(PI) 65 OHM/16PF SMD NXP Semiconductors Datasheet	5,000 Marketplace	3,806 : $304.48 Bulk	PEMIxQFN	Bulk	Obsolete	-	6-XFDFN	0.057" L x 0.039" W (1.45mm x 1.00mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 65Ohms, C = 16pF (Total)	0.020" (0.50mm)	17dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	65	Yes	-	2	-	-

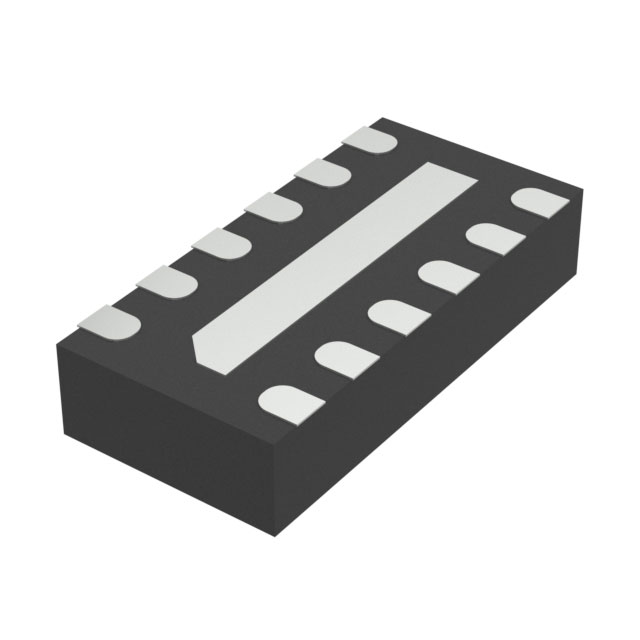

PEMI6QFN/HK,132 FILTER RC(PI) 45 OHM/13.5PF SMD NXP Semiconductors Datasheet	20,000 Marketplace	1,902 : $304.32 Bulk	PEMIxQFN	Bulk	Obsolete	-	12-XFDFN	0.098" L x 0.047" W (2.50mm x 1.20mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 45Ohms, C = 13.5pF (Total)	0.020" (0.50mm)	13dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	45	Yes	-	6	-	-

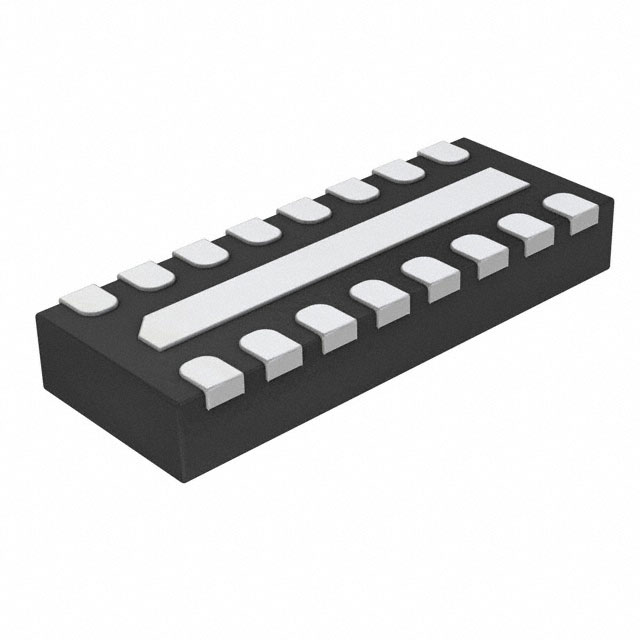

PEMI8QFN/CE,132 FILTER RC(PI) 20 OHM/8.5PF SMD NXP Semiconductors Datasheet	4,000 Marketplace	1,567 : $297.73 Bulk	PEMIxQFN	Bulk	Obsolete	-	16-XFDFN Exposed Pad	0.130" L x 0.047" W (3.30mm x 1.20mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 20Ohms, C = 8.5pF (Total)	0.020" (0.50mm)	7dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	20	Yes	-	8	-	-
PEMI6QFN/CE,132 FILTER RC(PI) 20 OHM/8.5PF SMD NXP Semiconductors Datasheet	20,000 Marketplace	1,902 : $304.32 Bulk	PEMIxQFN	Bulk	Obsolete	-	12-XFDFN	0.098" L x 0.047" W (2.50mm x 1.20mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 20Ohms, C = 8.5pF (Total)	0.020" (0.50mm)	7dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	20	Yes	-	6	-	-
PEMI8QFN/BYP,132 FILTER RC(PI) ESD SMD NXP Semiconductors Datasheet	60,000 Marketplace	1,567 : $297.73 Bulk	PEMIxQFN	Bulk	Obsolete	-	16-XFDFN Exposed Pad	0.130" L x 0.047" W (3.30mm x 1.20mm)	Surface Mount	Low Pass	-40°C ~ 85°C	-	0.020" (0.50mm)	-	2nd	LAN, PCS, WAN	RC (Pi)	-	-	Yes	-	8	-	-
PEMI2QFN/LT,115 FILTER RC(PI) 65 OHM/23PF SMD NXP Semiconductors Datasheet	15,000 Marketplace	3,806 : $304.48 Bulk	PEMIxQFN	Bulk	Obsolete	-	6-XFDFN	0.057" L x 0.039" W (1.45mm x 1.00mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 65Ohms, C = 23pF (Total)	0.020" (0.50mm)	23dB @ 800MHz ~ 3GHz	2nd	LAN, PCS, WAN	RC (Pi)	-	65	Yes	-	2	-	-

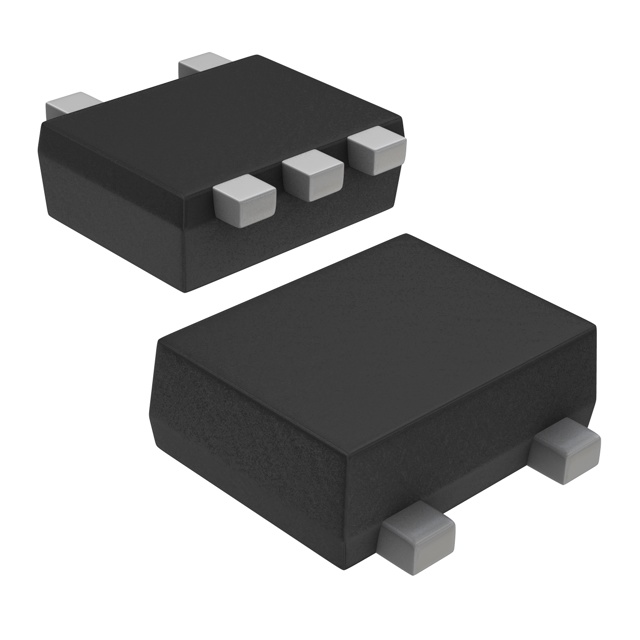

PEMI2STD/HT,115 DATA LINE FILTER NXP Semiconductors Datasheet	75,949 Marketplace	5,323 : $319.38 Bulk	PEMI2STD	Bulk	Obsolete	-	SOT-665	0.063" L x 0.047" W (1.60mm x 1.20mm)	Surface Mount	Low Pass	-40°C ~ 85°C	R = 45Ohms, C = 23pF (Total)	0.024" (0.60mm)	-	2nd	Data Lines for Mobile Devices	RC (Pi)	-	45	Yes	-	2	-	-
