SCRs

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	SCR Type	Operating Temperature	Current - Hold (Ih) (Max)	Current - Gate Trigger (Igt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (AV)) (Max)	Voltage - Gate Trigger (Vgt) (Max)	Voltage - On State (Vtm) (Max)	Current - Off State (Max)	Supplier Device Package	Grade	Current - On State (It (RMS)) (Max)	Voltage - Off State	Qualification
SK012DTP SCR 1KV 12A TO252 Wickmann / Littelfuse Datasheet	650 In Stock	1 : $1.49 10 : $12.40 100 : $98.00 750 : $667.50 Tube		Tube	Active	TO-252-3, DPAK (2 Leads + Tab), SC-63	Surface Mount	Standard Recovery	-40°C ~ 125°C	40 mA	20 mA	100A, 120A	7.6 A	1.5 V	1.6 V	20 µA	TO-252 (DPAK)	-	12 A	1 kV	-
S4070WTP SCR 400V 70A TO218X Wickmann / Littelfuse Datasheet	218 In Stock	1 : $8.38 25 : $167.25 100 : $599.00 500 : $2,640.00 1,000 : $4,760.00 2,000 : $8,920.00 Tube		Tube	Active	TO-218X-3	Through Hole	Standard Recovery	-40°C ~ 125°C	80 mA	50 mA	800A, 950A	45 A	2 V	1.8 V	20 µA	TO-218X	-	70 A	400 V	-
S4065JTP SCR 400V 65A TO218X Wickmann / Littelfuse Datasheet	147 In Stock	1 : $9.02 25 : $180.00 100 : $644.00 500 : $2,840.00 1,000 : $5,120.00 2,000 : $9,580.00 Tube		Tube	Active	TO-218X-3 Isolated Tab	Through Hole	Standard Recovery	-40°C ~ 125°C	80 mA	50 mA	800A, 950A	41 A	2 V	1.8 V	20 µA	TO-218X Isolated	-	65 A	400 V	-
S8065KTP SCR 800V 65A TO218 Wickmann / Littelfuse Datasheet	757 In Stock	1 : $9.97 25 : $199.00 100 : $712.00 500 : $3,140.00 1,000 : $5,660.00 Tube		Tube	Active	TO-218-3 Isolated Tab, TO-218AC	Through Hole	Standard Recovery	-40°C ~ 125°C	80 mA	50 mA	800A, 950A	41 A	2 V	1.8 V	20 µA	TO-218 Isolated Tab	-	65 A	800 V	-

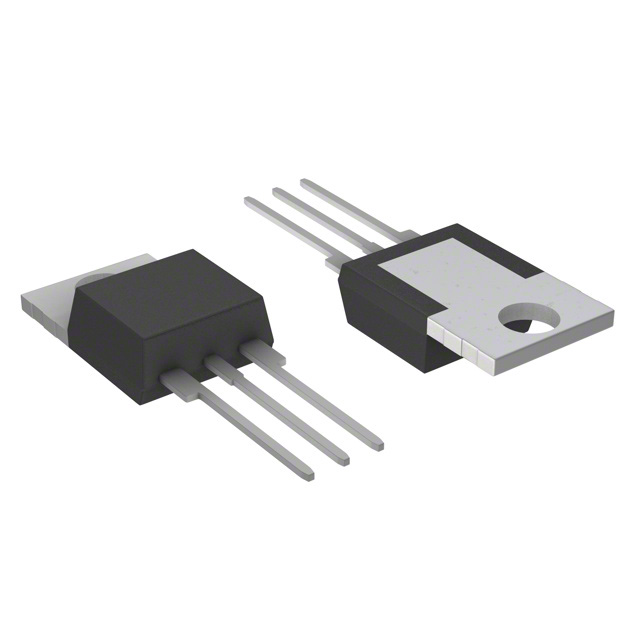

2N6508G SCR 600V 25A TO220AB Wickmann / Littelfuse Datasheet	1,660 In Stock	1 : $1.73 50 : $69.50 100 : $114.00 500 : $480.00 1,000 : $820.00 2,000 : $1,560.00 5,000 : $3,750.00 10,000 : $7,200.00 Tube		Tube	Active	TO-220-3	Through Hole	Standard Recovery	-40°C ~ 125°C	40 mA	30 mA	250A @ 60Hz	16 A	1.5 V	1.8 V	10 µA	TO-220AB	-	25 A	600 V	-
S4020LTP SCR 400V 20A TO220AB-L Wickmann / Littelfuse Datasheet	750 In Stock	1 : $1.85 10 : $15.40 100 : $123.00 500 : $555.00 Tube		Tube	Active	TO-220-3 Isolated Tab	Through Hole	Standard Recovery	-40°C ~ 125°C	40 mA	30 mA	255A, 300A	12.8 A	1.5 V	1.6 V	10 µA	TO-220AB-L	-	20 A	400 V	-
SK055RTP SCR 1KV 55A TO220AB-R Wickmann / Littelfuse Datasheet	10,629 In Stock	1 : $5.37 50 : $213.00 100 : $365.00 500 : $1,620.00 1,000 : $2,780.00 2,000 : $5,240.00 Tube		Tube	Active	TO-220-3	Through Hole	Standard Recovery	-40°C ~ 125°C	60 mA	40 mA	550A, 650A	35 A	1.5 V	1.8 V	30 µA	TO-220AB-R	-	55 A	1 kV	-
SV6012L1TP SCR 12A 600V HI TEMP TO220L Wickmann / Littelfuse Datasheet	985 In Stock	1 : $2.55 10 : $21.20 100 : $169.00 500 : $715.00 1,000 : $1,210.00 2,000 : $2,300.00 5,000 : $5,550.00 Tube	SV	Tube	Active	TO-220-3	Through Hole	Sensitive Gate	-40°C ~ 150°C (TJ)	22 mA	6 mA	100A, 120A	7.6 A	1.5 V	1.6 V	10 µA	TO-220AB	-	12 A	600 V	-
S8040RTP SCR 800V 40A TO220AB-R Wickmann / Littelfuse Datasheet	240 In Stock	1 : $3.38 10 : $28.40 100 : $230.00 500 : $1,125.00 Tube		Tube	Active	TO-220-3	Through Hole	Standard Recovery	-40°C ~ 125°C	60 mA	40 mA	430A, 520A	25 A	1.5 V	1.8 V	20 µA	TO-220AB-R	-	40 A	800 V	-
SJ6012V1TP SCR 600V 12A TO251 Wickmann / Littelfuse Datasheet	689 In Stock	1 : $2.08 10 : $17.30 100 : $138.00 500 : $580.00 1,000 : $990.00 2,000 : $1,880.00 5,000 : $4,500.00 10,000 : $8,700.00 Tube	SJ	Tube	Active	TO-251-3 Short Leads, IPak, TO-251AA	Through Hole	Standard Recovery	-40°C ~ 150°C (TJ)	40 mA	20 mA	100A, 120A	7.6 A	1.5 V	1.6 V	10 µA	TO-251AA	-	12 A	600 V	-
