Crystals

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Surface Mount

Through Hole

Type

MEMS

MHz Crystal

MHz Crystal (w/Thermistor)

SAW

kHz Crystal (Tuning Fork)

Operating Mode

3rd Overtone

5th Overtone

Fundamental

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Load Capacitance	Size / Dimension	Mounting Type	Type	Operating Temperature	Frequency Stability	Frequency Tolerance	Operating Mode	Ratings	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Frequency

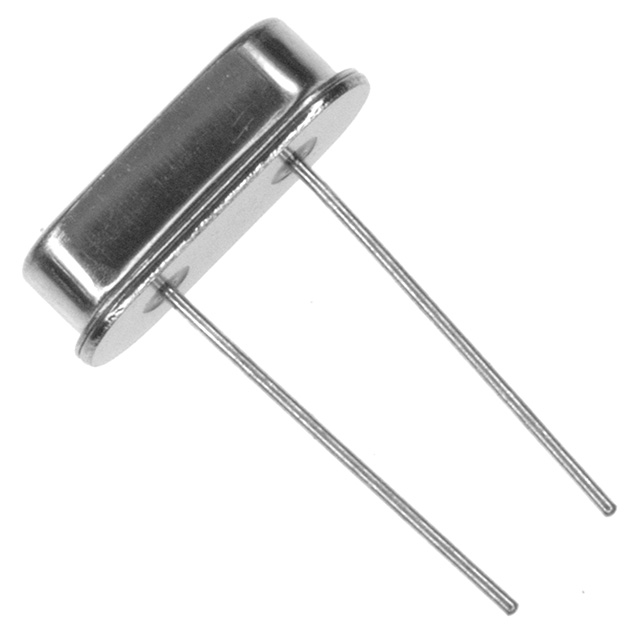

ECS-110.5-S-4X CRYSTAL 11.0592MHZ SERIES TH ECS Inc. International Datasheet	1,138 In Stock	1 : $0.70 10 : $5.80 200 : $92.00 1,000 : $370.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	60 Ohms	11.0592 MHz

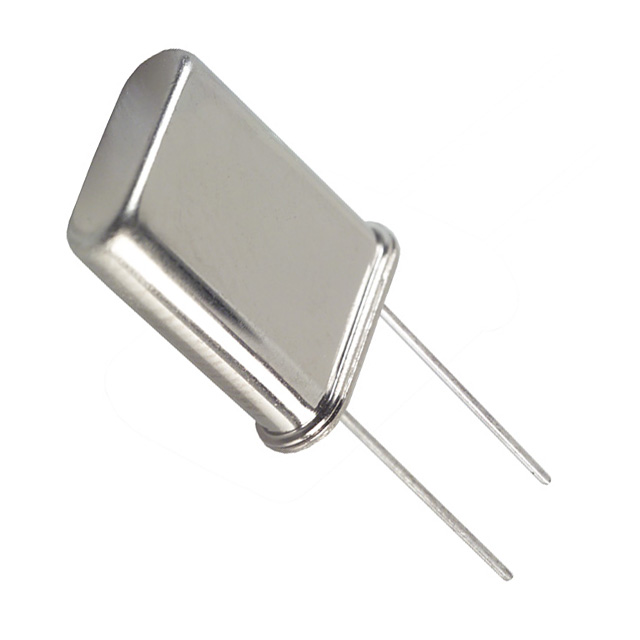

ECS-184-20-1X CRYSTAL 18.4320MHZ 20PF TH ECS Inc. International Datasheet	821 In Stock	1 : $0.70 10 : $5.80 100 : $46.00 1,000 : $370.00 5,000 : $1,700.00 10,000 : $3,200.00 Bulk	HC-49UX	Bulk	Active	HC-49/U	20pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.530" (13.46mm)	20 Ohms	18.432 MHz
ECS-110.5-20-4X CRYSTAL 11.0592MHZ 20PF TH ECS Inc. International Datasheet	7,616 In Stock	1 : $0.67 10 : $5.60 200 : $88.00 1,000 : $360.00 5,000 : $1,600.00 10,000 : $3,100.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	20pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	60 Ohms	11.0592 MHz
ECS-240-S-4X CRYSTAL 24.0000MHZ SERIES TH ECS Inc. International Datasheet	540 In Stock	1 : $0.70 10 : $5.80 50 : $26.00 200 : $92.00 600 : $264.00 1,000 : $370.00 2,600 : $910.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	30 Ohms	24 MHz
ECS-250-18-4X-F CRYSTAL 25.0000MHZ 18PF TH ECS Inc. International Datasheet	1,756 In Stock	1 : $0.70 10 : $5.80 200 : $92.00 1,000 : $370.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	18pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	30 Ohms	25 MHz
ECS-73-S-4X CRYSTAL 7.3728MHZ SERIES TH ECS Inc. International Datasheet	312 In Stock	1 : $0.70 10 : $5.80 50 : $26.00 200 : $92.00 600 : $264.00 1,000 : $370.00 2,600 : $910.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	80 Ohms	7.3728 MHz
ECS-50-S-4X CRYSTAL 5.0000MHZ SERIES TH ECS Inc. International Datasheet	218 In Stock	1 : $0.70 10 : $5.80 50 : $26.00 200 : $92.00 600 : $264.00 1,000 : $370.00 2,600 : $910.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	120 Ohms	5 MHz
ECS-160-S-4X CRYSTAL 16.0000MHZ SERIES TH ECS Inc. International Datasheet	1,806 In Stock	1 : $0.68 10 : $5.70 200 : $90.00 1,000 : $360.00 5,000 : $1,650.00 10,000 : $3,200.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	40 Ohms	16 MHz
ECS-143-20-4X CRYSTAL 14.31818MHZ 20PF TH ECS Inc. International Datasheet	11,372 In Stock	1 : $0.70 10 : $5.80 200 : $92.00 1,000 : $370.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	20pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	40 Ohms	14.31818 MHz
ECS-200-20-4XDN CRYSTAL 20.0000MHZ 20PF TH ECS Inc. International Datasheet	543 In Stock	1 : $0.71 10 : $6.30 200 : $104.00 1,000 : $410.00 5,000 : $1,900.00 10,000 : $3,700.00 Bulk	HC-49USX-DN	Bulk	Active	HC-49/US	20pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-40°C ~ 85°C	±100ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	30 Ohms	20 MHz
