1,328 Results
Mfr Part # Quantity Price Series Package Product Status Features Connector Type Voltage Rating Current Rating (Amps) Mounting Type Number of Positions Number of Rows Style Operating Temperature Applications Contact Type Fastening Type Number of Positions Loaded Termination Ingress Protection Material Flammability Rating Contact Material Mated Stacking Heights Insulation Color Pitch - Mating Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Contact Finish Thickness - Post Contact Shape Contact Length - Post Insulation Height Shrouding Overall Contact Length Insulation Material Row Spacing - Mating Contact Length - Mating
375
In Stock
1 : $13.49
10 : $119.60
25 : $287.50
50 : $552.00
100 : $1,043.00
250 : $2,377.50
500 : $4,445.00
1,000 : $8,160.00
Box
MICROSPEED
Box
Active

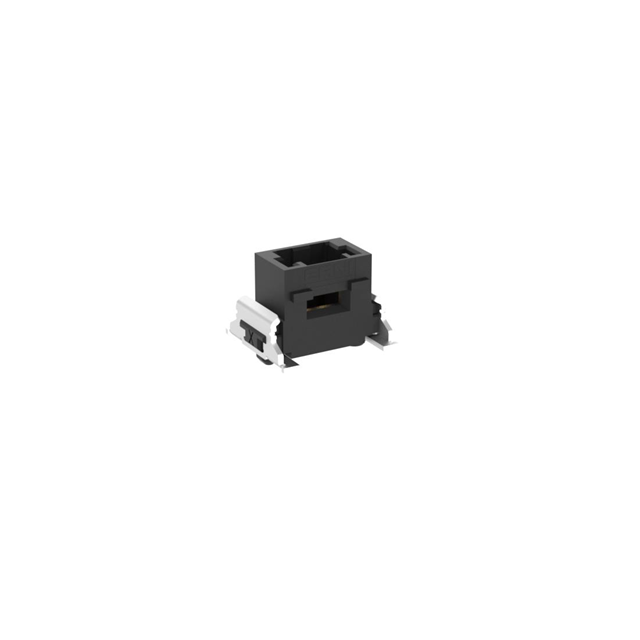

Board Guide Header - 18A Through Hole, Right Angle 5 1 Board to Cable/Wire -55°C ~ 125°C - Male Pin, Power Push-Pull All Solder - UL94 V-0 Copper Alloy - Black 0.079" (2.00mm) Gold - Tin 157.5µin (4.00µm) Rectangular - 0.266" (6.75mm) Shrouded - 4 Wall - Liquid Crystal Polymer (LCP) - -
101
In Stock
1 : $5.26
35 : $158.55
105 : $442.05
525 : $1,879.50
1,015 : $3,095.75
Tube
SMC
Tube
Active

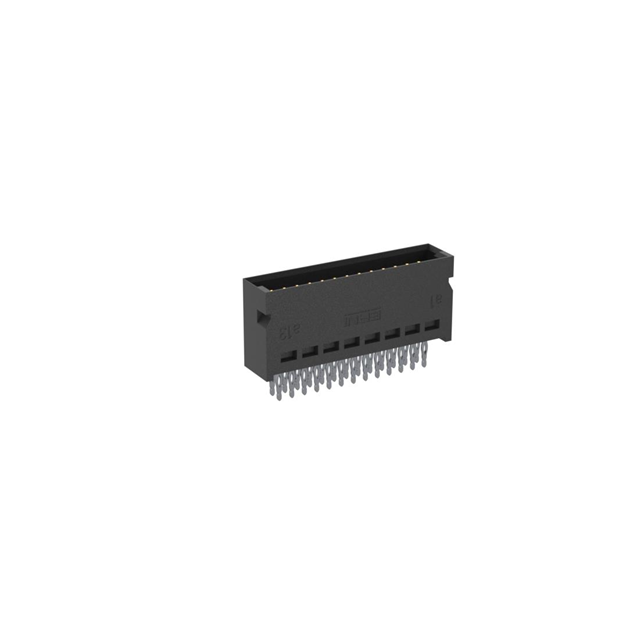

- Header - 1.7A per Contact Through Hole 26 2 Board to Board -55°C ~ 125°C - Male Pin Push-Pull All Press-Fit - UL94 V-0 Copper Alloy - Black 0.050" (1.27mm) Gold - Tin 39.4µin (1.00µm) Square 0.110" (2.79mm) 0.323" (8.20mm) Shrouded - 4 Wall 0.394" (10.00mm) Liquid Crystal Polymer (LCP) 0.050" (1.27mm) 0.157" (4.00mm)
1,911
In Stock
1 : $4.62
65 : $252.20
130 : $479.70
520 : $1,632.80
1,040 : $2,787.20
Tube
SMC
Tube
Active

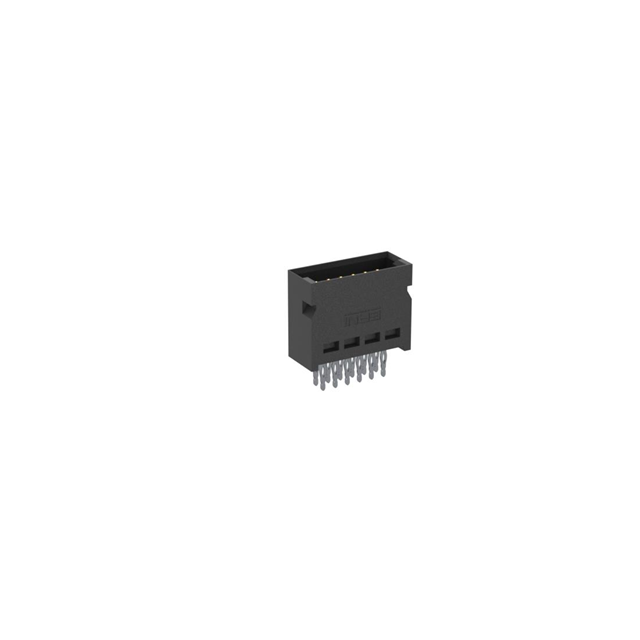

- Header - 1.7A per Contact Through Hole 12 2 Board to Board -55°C ~ 125°C - Male Pin Push-Pull All Press-Fit - UL94 V-0 Copper Alloy - Black 0.050" (1.27mm) Gold - Tin 39.4µin (1.00µm) Square 0.110" (2.79mm) 0.323" (8.20mm) Shrouded - 4 Wall 0.394" (10.00mm) Liquid Crystal Polymer (LCP) 0.050" (1.27mm) 0.157" (4.00mm)
170
In Stock
1 : $15.97
10 : $141.60
25 : $340.25
50 : $653.50
100 : $1,234.00
250 : $2,812.50
500 : $5,265.00
1,000 : $9,650.00
Box
MICROSPEED
Box
Active
Pick and Place Header - - Through Hole, Right Angle 50 2 Board to Cable/Wire - - Male Pin Push-Pull All Solder - UL94 V-0 - - Natural 0.039" (1.00mm) Gold - Tin 157.5µin (4.00µm) Square - 0.543" (13.80mm) Shrouded - 4 Wall - - 0.059" (1.50mm) -
524226-E
SRCA 6,20 2 M * SMD 137 E-HD 197
0
In Stock
1 : $3.37
10 : $30.60
480 : $1,099.20
1,440 : $2,808.00
5,280 : $9,240.00
Bulk
VolTron 1000
Bulk
Active
Solder Retention Header 1000VDC 5A Surface Mount, Right Angle 2 1 Board to Cable/Wire -40°C ~ 150°C - Male Pin Push-Pull All Solder - UL94 V-0 Copper Alloy - Black 0.244" (6.20mm) Gold - Tin 157.5µin (4.00µm) Square - 0.197" (5.00mm) Shrouded - 4 Wall - Polyphthalamide (PPA) - 0.161" (4.09mm)
250
In Stock
400 : $3,940.00
800 : $6,960.00
Tape & Reel (TR)
MICROSPEED
Tape & Reel (TR)
Cut Tape (CT)
Active

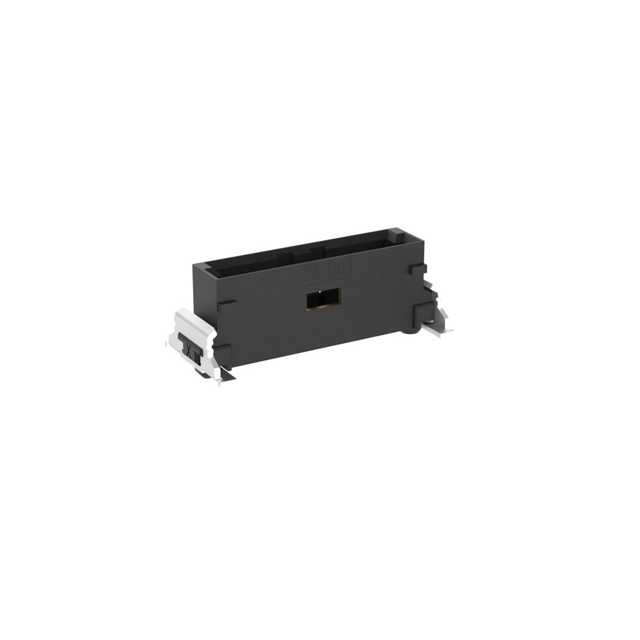

Board Guide, Pick and Place Header - 1A Surface Mount 50 2 Board to Cable/Wire -55°C ~ 125°C - Male Pin Latch Holder All Solder - UL94 V-0 Copper Alloy - Black 0.039" (1.00mm) Gold - Tin 157.5µin (4.00µm) Square - 0.228" (5.80mm) Shrouded - 4 Wall - Liquid Crystal Polymer (LCP) 0.059" (1.50mm) 0.114" (2.90mm)
356
In Stock
400 : $3,728.00
800 : $6,592.00
1,200 : $9,600.00
Tape & Reel (TR)
MICROSPEED
Tape & Reel (TR)
Cut Tape (CT)
Active
Board Guide, Pick and Place Header - 1A Surface Mount, Through Hole 50 2 Board to Cable/Wire -55°C ~ 125°C - Male Pin Latch Holder All Solder - UL94 V-0 Copper Alloy - Black 0.039" (1.00mm) Gold - Tin 157.5µin (4.00µm) Square 0.047" (1.20mm) 0.228" (5.80mm) Shrouded - 4 Wall - Liquid Crystal Polymer (LCP) 0.059" (1.50mm) 0.114" (2.90mm)
397
In Stock
400 : $2,128.00
800 : $3,760.00
1,200 : $5,268.00
2,000 : $8,580.00
Tape & Reel (TR)
MICROSPEED
Tape & Reel (TR)
Cut Tape (CT)
Active

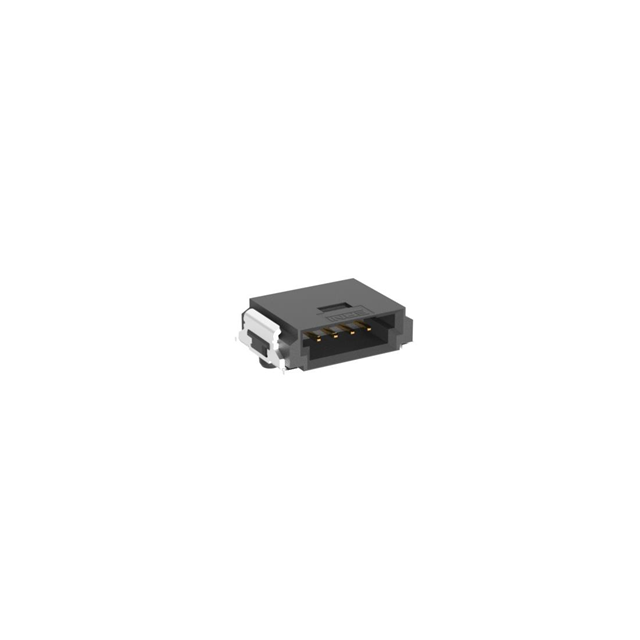

Board Guide, Pick and Place Header - 1A Surface Mount 5 1 Board to Cable/Wire -55°C ~ 125°C - Male Blade Latch Holder All Solder - UL94 V-0 Copper Alloy - Black 0.039" (1.00mm) Gold - Tin 157.5µin (4.00µm) Rectangular - 0.189" (4.80mm) Shrouded - 4 Wall - Liquid Crystal Polymer (LCP) 0.079" (2.00mm) 0.108" (2.75mm)
184
In Stock
220 : $1,364.00
440 : $2,296.80
1,100 : $5,027.00
1,540 : $6,883.80
Tape & Reel (TR)
MICROSPEED
Tape & Reel (TR)
Cut Tape (CT)
Active

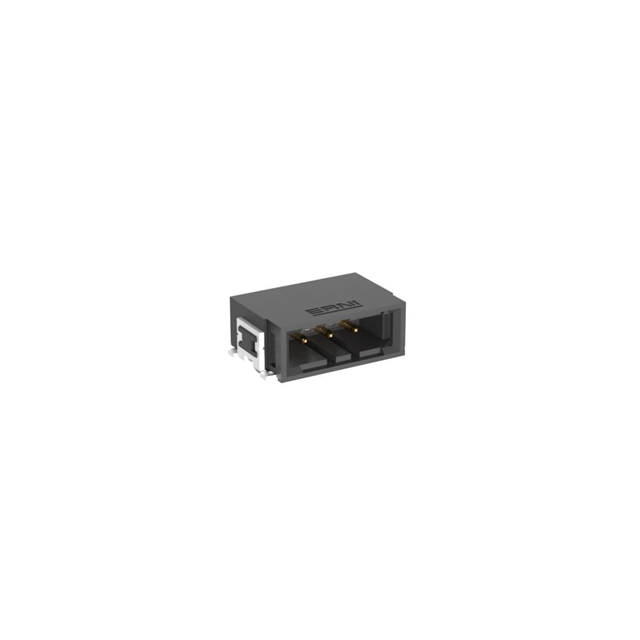

Board Guide Header - 18A Surface Mount 5 1 Board to Cable/Wire -55°C ~ 125°C - Male Blade Latch Holder All Solder - UL94 V-0 Copper Alloy - Black 0.079" (2.00mm) Gold - Tin - Rectangular - 0.504" (12.80mm) Shrouded - 4 Wall - Liquid Crystal Polymer (LCP) - 0.108" (2.75mm)
400
In Stock
400 : $3,188.00
800 : $5,600.00
1,200 : $7,944.00
Tape & Reel (TR)
MICROSPEED
Tape & Reel (TR)
Cut Tape (CT)
Active

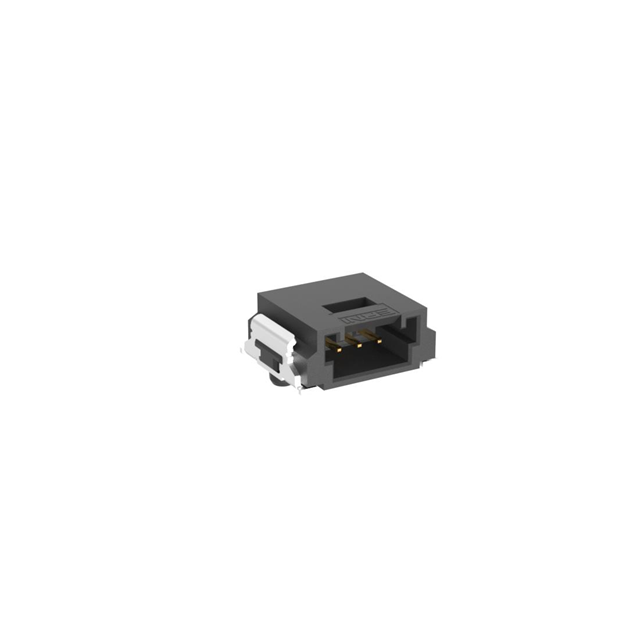

Board Guide Header - 18A Surface Mount, Right Angle 5 1 Board to Cable/Wire -55°C ~ 125°C - Male Blade Latch Holder All Solder - UL94 V-0 Copper Alloy - Black 0.079" (2.00mm) Gold - Tin 157.5µin (4.00µm) Rectangular - 0.230" (5.85mm) Shrouded - 4 Wall - Liquid Crystal Polymer (LCP) - 0.108" (2.75mm)
