RF Directional Coupler

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Frequency	Insertion Loss	Applications	Power - Max	Coupling Factor	Coupler Type	Isolation	Return Loss	Supplier Device Package
ZX30-17-5-S+ 17.5 DB DIR COUP, 5 - 2000 MHZ Mini-Circuits Datasheet	10 In Stock	1 : $66.54 10 : $620.40 25 : $1,438.75 80 : $4,316.00 Tray		Tray	Active	Module	5MHz ~ 2GHz	-	General Purpose	-	18.5 ± 1dB	Standard	-	-	-
ZFDC-20-5-S+ DIR COUP / SMA / ROHS Mini-Circuits Datasheet	19 In Stock	1 : $124.70 Tray		Tray	Active	Module, SMA Connectors	100kHz ~ 2GHz	-	General Purpose	2W	19.5 ± 0.5dB	Standard	-	27.83dB	-
ZFDC-10-5-S+ DIR COUP / SMA ROHS Mini-Circuits Datasheet	2 In Stock	1 : $124.70 Tray		Tray	Active	Module, SMA Connectors	1MHz ~ 2GHz	-	General Purpose	500mW	10.8 ± 0.5dB	Standard	-	31.26dB	-
ZVDC-20-0123+ 20 DB DIR COUP, 1000 - 20000 MHZ Mini-Circuits Datasheet	4 In Stock	1 : $659.24 10 : $6,160.10 Tray		Tray	Active	Module, SMA Connectors	1GHz ~ 20GHz	-	General Purpose	-	20 ± 1dB	Standard	-	26dB	Module

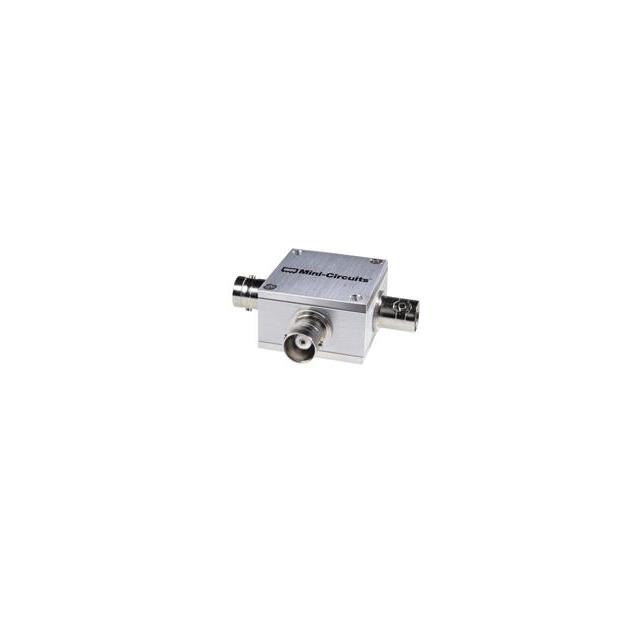

ZFDC-10-5+ 10.8 DB DIR COUP, 1 - 2000 MHZ Mini-Circuits Datasheet	9 In Stock	1 : $158.42 10 : $1,488.20 25 : $3,540.50 Tray		Tray	Active	BNC In-Line Module	1MHz ~ 2GHz	-	Cellular	-	10.8 ± 0.5dB	Standard	-	-	-
ZFDC-20-4-S+ 19.5 DB DC, 1 - 1000 MHZ, 50 Mini-Circuits Datasheet	10 In Stock	1 : $123.80 10 : $1,167.20 25 : $2,741.25 80 : $8,205.60 Tray		Tray	Active	Module, SMA Connectors	1MHz ~ 1GHz	-	Cellular	-	19.5 ± 0.5dB	Standard	-	-	-
ZABDC20-252H-S+ BI-DIR COUP / SMA / ROHS Mini-Circuits Datasheet	8 In Stock	1 : $163.42 Tray		Tray	Active	Module, SMA Connectors	800MHz ~ 2.5GHz	-	General Purpose	100W	23 ± 1dB	Standard	-	49.29dB	-
ZX30-20-4-S+ 20.5 DB DC, 5 - 1000 MHZ, 50 Mini-Circuits Datasheet	10 In Stock	1 : $44.51 Tray		Tray	Active	Module	5MHz ~ 1GHz	-	General Purpose	1W	20.5 ± 0.6dB	Standard	-	-	-
ZABDC20-322H-S+ 20.5 DB BI-DC, 1700 - 3200 MHZ Mini-Circuits Datasheet	13 In Stock	1 : $234.76 Tray		Tray	Active	Module, SMA Connectors	1.7GHz ~ 3.2GHz	-	DCS, PCS, UMTS	50W	20 ± 1dB, 20.5 ± 1dB	Standard	-	-	-
ZFDC-6-23B-S+ 6 DB DC, 20 - 2000 MHZ, 50 Mini-Circuits Datasheet	10 In Stock	1 : $123.80 10 : $1,167.20 Bulk		Bulk	Active	Module, SMA Connectors	20MHz ~ 2GHz	-	Cellular	-	6.4 ± 0.5dB	Standard	-	24dB	-
