Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Connector Type	Contact Finish	Color	Voltage Rating	Current Rating (Amps)	Mounting Type	Number of Positions	Pitch	Number of Rows	Operating Temperature	Number of Positions Loaded	Termination	Connector Usage	Connector Style	Contact Finish Thickness	Material Flammability Rating	Contact Layout, Typical	Number of Columns
516-056-520-202 CONN RCPT RACK & PNL 56P PNL MT EDAC Inc. Datasheet	236 In Stock	1 : $45.83 10 : $401.40 25 : $960.00 50 : $1,858.00 100 : $3,592.00 250 : $8,485.00 Tray	516	Tray	Active	Jackscrew, Guide Pin	Receptacle, Hermaphroditic Contacts	Gold	Green	-	8.5A	Through Hole	56	0.150" (3.81mm)	9	-40°C ~ 125°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	14
516-020-520-302 CONN PLUG RACK & PNL 20P PNL MT EDAC Inc. Datasheet	105 In Stock	1 : $25.17 25 : $527.25 100 : $1,973.00 Bulk	516	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Gray	-	8.5A	Through Hole	20	0.150" (3.81mm)	4	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	10
516-056-520-602 CONN RCPT RACK & PNL 56P PNL MT EDAC Inc. Datasheet	514 In Stock	1 : $39.59 10 : $346.70 25 : $829.25 50 : $1,605.00 100 : $3,103.00 250 : $7,330.00 Tray	516	Tray	Active	Jackscrew Socket, Mating Guide	Receptacle, Hermaphroditic Contacts	Gold	Green	-	8.5A	Through Hole	56	0.150" (3.81mm)	9	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	14
516-038-520-302 CONN PLUG RACK & PNL 38P PNL MT EDAC Inc. Datasheet	125 In Stock	1 : $34.46 10 : $301.70 25 : $721.75 50 : $1,397.00 100 : $2,701.00 250 : $6,380.00 Bulk	516	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Gray	-	8.5A	Through Hole	38	0.150" (3.81mm)	9	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	10

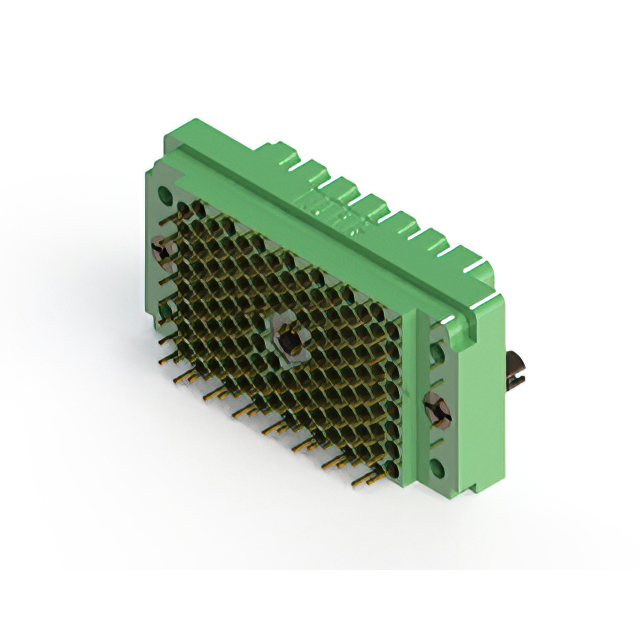

516-120-520-202 CONN RCPT RACK & PNL 120P PNL MT EDAC Inc. Datasheet	24 In Stock	1 : $73.69 10 : $676.30 25 : $1,625.50 50 : $3,143.00 100 : $5,939.00 Tray	516	Tray	Active	Jackscrew Socket, Mating Guide	Receptacle, Hermaphroditic Contacts	Gold	Green	-	8.5A	Through Hole	120	0.150" (3.81mm)	17	-40°C ~ 125°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	15
516-056-520-302 CONN PLUG RACK & PNL 56P PNL MT EDAC Inc. Datasheet	24 In Stock	1 : $39.95 25 : $836.75 100 : $3,131.00 Bulk	516	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Gray	-	8.5A	Through Hole	56	0.150" (3.81mm)	9	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	14
519-014-501-366 519 SERIES RACK & PANEL CONNECTO EDAC Inc. Datasheet	0 In Stock	25 : $1,256.75 Bulk	519	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Gray	-	8.5A	Free Hanging (In-Line)	14	0.150" (3.81mm)	3	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	6
516-090-501-320 516 SERIES RACK & PANEL CONNECTO EDAC Inc. Datasheet	0 In Stock	25 : $1,505.50 Bulk	516	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Gray	-	8.5A	Free Hanging (In-Line)	90	0.150" (3.81mm)	13	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	15
516-090-501-520 516 SERIES RACK & PANEL CONNECTO EDAC Inc. Datasheet	0 In Stock	25 : $1,505.50 Bulk	516	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Green	-	8.5A	Free Hanging (In-Line)	90	0.150" (3.81mm)	13	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	15
516-038-501-362 516 SERIES RACK & PANEL CONNECTO EDAC Inc. Datasheet	0 In Stock	25 : $1,419.25 Bulk	516	Bulk	Active	Jackscrew, Guide Pin	Plug, Hermaphroditic Contacts	Gold	Gray	-	8.5A	Free Hanging (In-Line)	38	0.150" (3.81mm)	9	-40°C ~ 105°C	All	Solder	Backplane	Rack and Panel	10.0µin (0.25µm)	UL94 V-0	-	10
